180 Watt Portable Solar Panel N-Type 16BB

(0)

$229.99

  • High-efficiency N-Type 16BB cells with a 25% conversion rate.
  • Durable ETFE layer for waterproof, dustproof, and high-temperature resistance.
  • Retains 80% Output after 20 Years.
  • Foldable design with aluminum frame—perfect for outdoor use.
  • Wide compatibility with power stations.
  • Enhanced low-light performance
  • 5-Year Warranty.

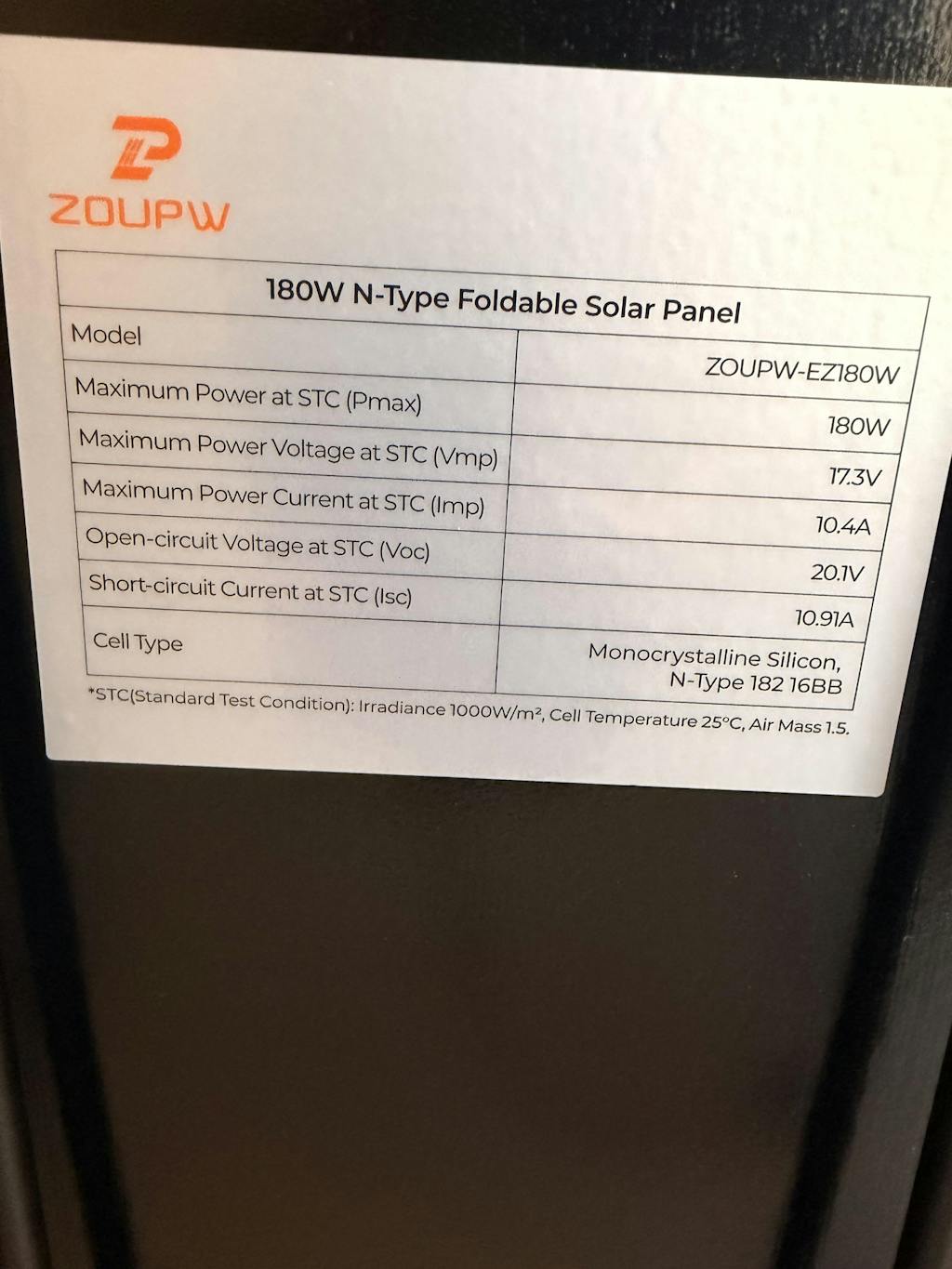

Technical Specifications

  • Model

    ZOUPW-EZ180W

  • Maximum Power at STC (Pmax)

    180W

  • Maximum Power Voltage (Vmp)

    17.3V

  • Maximum Power Current (Imp)

    10.4A

  • Opencircuit Voltage (Voc)

    20.1V

  • Shortcircuit Current (Isc)

    10.91A

  • Cell Type

    Monocrystalline Silicon, N-Type 182 16BB

  • Surface Material

    ETFE

  • IP Rating

    IP68

  • Cell Efficiency

    25%

  • Operating Temperature Range

    -4°F ~ 140°F / -20°C ~ 60°C

  • Frame

    Anodized Aluminium Alloy

Connection & Compatibility

  • Supports DC7909(8.0), XT60, Anderson and universal solar connectors.

  • Wide compatibility with power stations.

Dimensions

  • Unfolded

    55.19× 32.09 × 0.87in / 1402 × 815 × 22mm

  • Folded

    ‎27.56 × 32.09 × 1.73in / 700 × 815 × 44mm

  • Weight

    12.35lb / 5.6kg

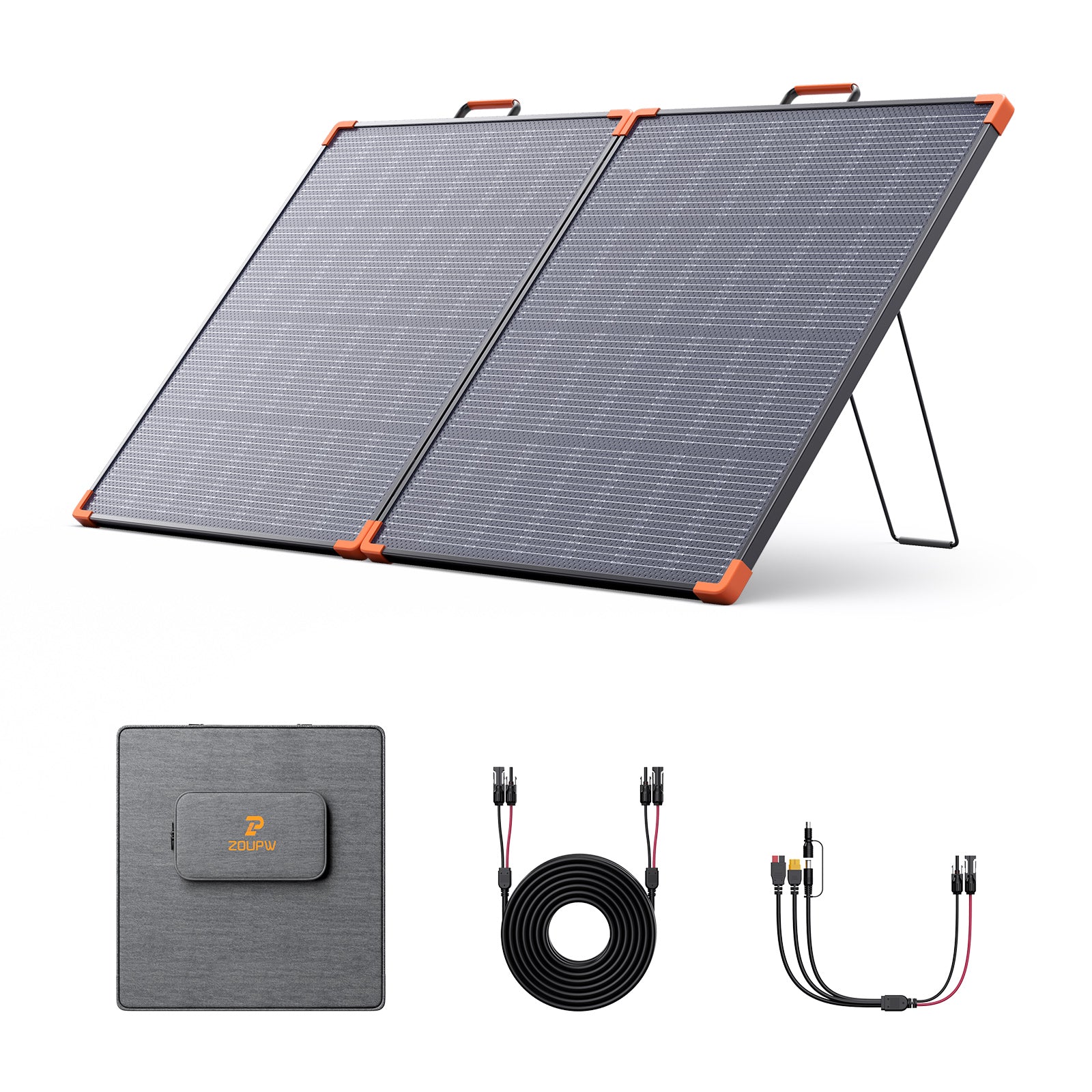

1. 180W N-Type Foldable Solar Panel × 1 Pcs
2. Solar Connectors to DC7909/XT60/Anderson Cable × 1 Pcs
3.DC5521 (Female) to DC6544/6330/5525/5521/
5517/4817/4017/35135/7450/7955 (Male) Adapters Set × 1
4. Storage Bag × 1 Pcs
5. User Manual × 1 Pcs

User Manual download

Free & Fast Shipping

30-Day Money back

Professional Support

Share

180 Watt Portable Solar Panel N-Type 16BB

180 Watt Portable Solar Panel N-Type 16BB

$229.99

$229.99

Reliable and Compact 180 Watt Portable Solar Panel

Take solar power anywhere with the ZOUPW 180W Foldable Solar Panel. Built for outdoor adventurers and emergency planners, this panel features a reinforced foldable design, quick 5-second setup, and lightweight portability. Whether you’re camping, hitting the road in your RV, or preparing for emergencies, dependable solar energy is always within reach.

25% High Efficiency with N-Type 16BB Technology

Using premium A+ monocrystalline silicon cells combined with cutting-edge N-Type 16BB technology, this panel achieves an outstanding 25% conversion efficiency. It captures more sunlight even in cloudy or shaded conditions, helping you maximize power generation anytime, anywhere.

Durable, Weatherproof, and Built to Last

Designed for real-world adventures, this 180W solar panel is reinforced with fiberglass and features an IP68 waterproof rating. The rugged ETFE coating offers superior protection against scratches, heat, and corrosion, while the robust PC material hinges withstand over 5000 folding cycles. Corner protections add extra durability for long-term outdoor use. Retains 80% efficiency even after 20 years.

Note:Please do not submerge the solar panels portable in water.

Wide Compatibility with Easy Connectivity

Equipped with a 4-in-1 connector cable (DC7909, DC5521,XT-60, and Anderson) for wide-ranging compatibility. 180 Watt Portable Solar Panel easily connects to most portable power stations, RV batteries, camping fridges, or emergency backup systems. Operating at 17V output, it ensures a smooth fit for a wide range of off-grid setups.

Note: The panel itself does not store electricity—pair it with a compatible power station or a battery .

180 Watt Portable Solar Panel N-Type 16BB

Multiple usage scenarios

Reliable energy backup for any unpredictable situation.

Lightweight and quick to set up, perfect for powering your outdoor adventures.

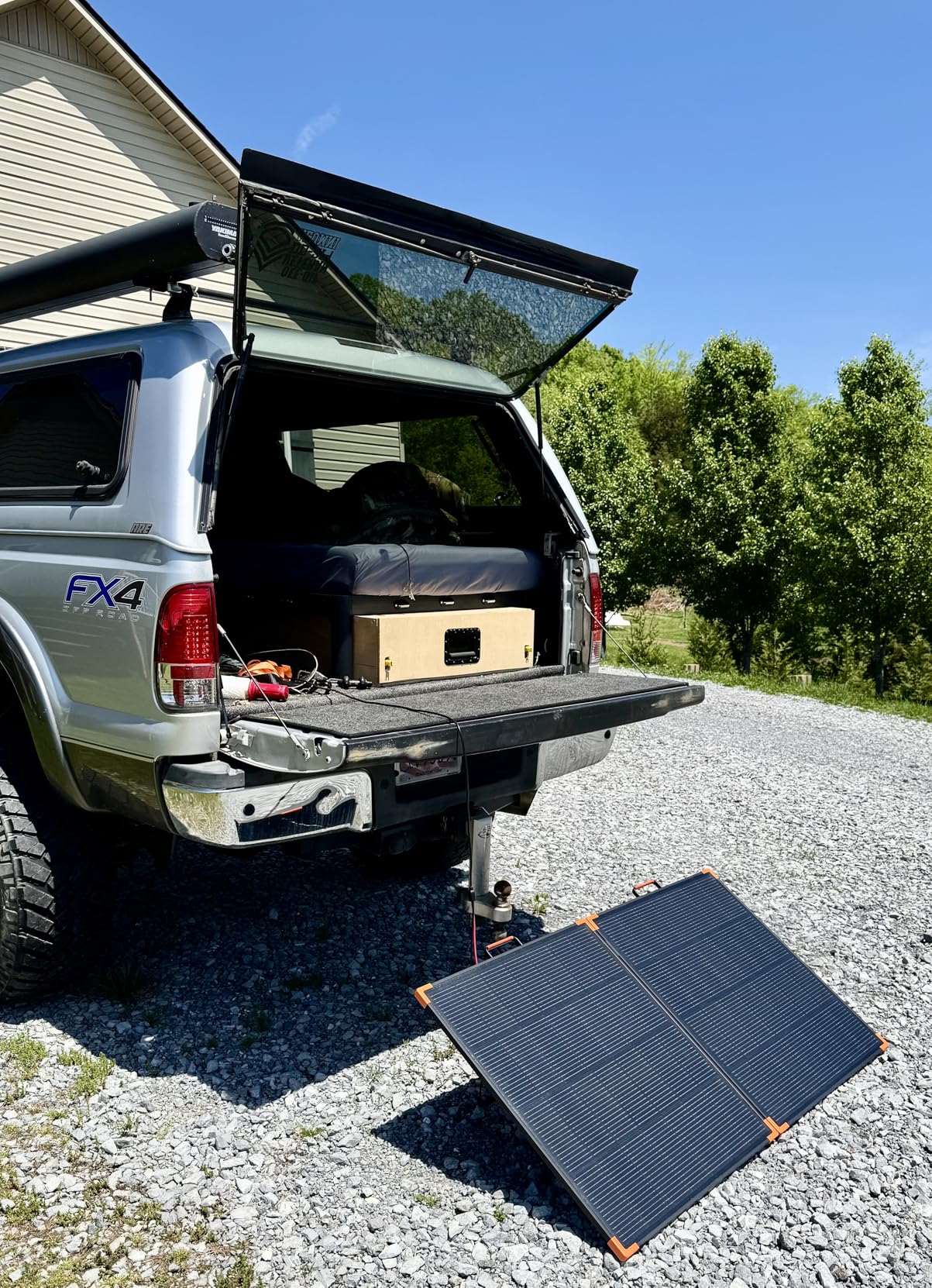

Enjoy reliable and portable solar energy on the road without permanent installations.

FAQS About 180 Watt Portable Solar Panel N-Type 16BB

Please read the product detail page carefully before placing your order. This solar panel comes with a solar charging cable that includes four connectors: XT-60, Anderson, DC7909, and DC8020. Before purchasing, please confirm that your power station's solar interface is compatible with at least one of these four connectors. Additionally, the output voltage of this solar panel is 17.3V, so please ensure that your power station's input voltage range includes 17.3V.

i. Please check the environment and weather. Electricity generation may be reduced or
disrupted during cloudy or rainy conditions.
ii. Confirm that the solar panel is oriented towards direct sunlight. Adjust its position to
ensure sufficient sunlight exposure on the surface.
iii.Please check if the output cable is properly plugged in or if there are any defects or
loose connections. Try reconnecting the output cable.
iv.Please inspect the surface of the solar panel for any obstructions. Remove any obsta
cles if present.

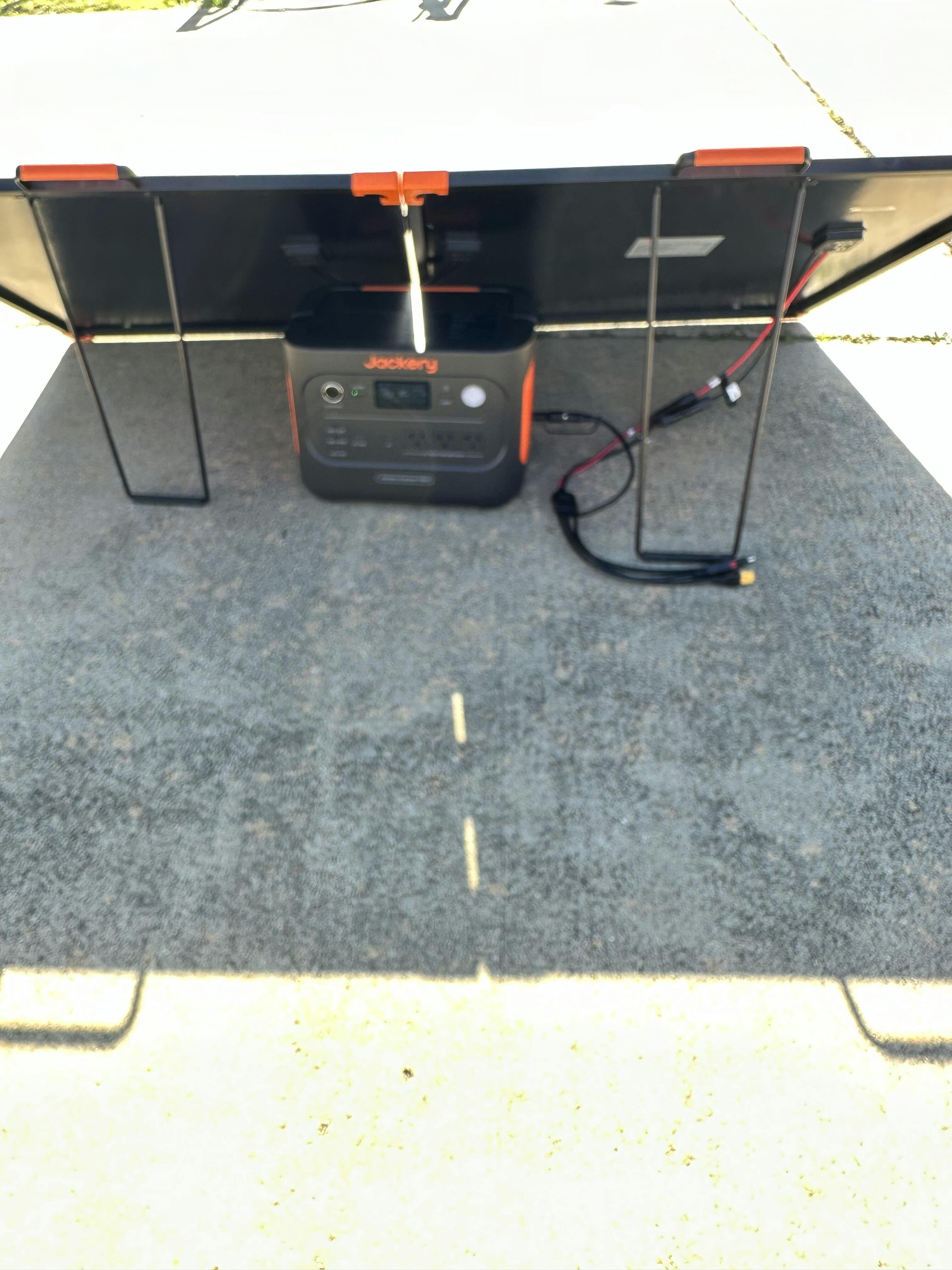

4. Solar panel and power station connection instructions:
a. Connect the MC-4 cable to the MC-4 interface on the solar panel.
b. The output end of the MC-4 cable includes DC5521 (Male), DC7909 (Male), DC8020(Male),
XT60 (Female), or Anderson connectors. Please choose the appropriate connector to con
nect to your power station for charging.
c. If necessary, you can use the provided DC5521 (Female) to DC6544/6330/5525/5521/
5517/4817/4017/35135/7450/7955 (Male) adapters for connecting.
d.Please ensure that all connection cables, adapters, and ports are securely attached to
ensure proper charging. You can check the charging status through the display screen on
your powered devices.
Product Maintenance
After long-term use, dust may adhere to the surface of the panel, blocking sunlight and
reducing the cells ability to absorb sunlight. Regularly clean the solar panel by gently
wiping it with a damp cloth. Do not use corrosive liquids to clean the solar panel.
※NOTICE! The DC7909 (8.0) and DC8020 sockets may appear similar but are not compatible.
Connecting a DC7909 (8.0) plug directly into a DC8020 socket will not supply power. If your
device does not charge when using the DC7909 (8.0) connector, please check if it has a DC8020
socket. If so, use the included DC7909 (8.0) to DC8020 adapter to ensure proper power supply.
Q:
A:
Red Cable
Black Cable
XT60 (Female)
Anderson
DC7909 (8.0)
DC8020(Male)
DC5521 (Male)
3
v. Please check if your charging device is overheating. Some devices may automatically
adjust their charging power or even pause charging based on temperature condi
tions. In such cases, please pause using the device or shut it down, wait for it to cool
down, and then resume charging

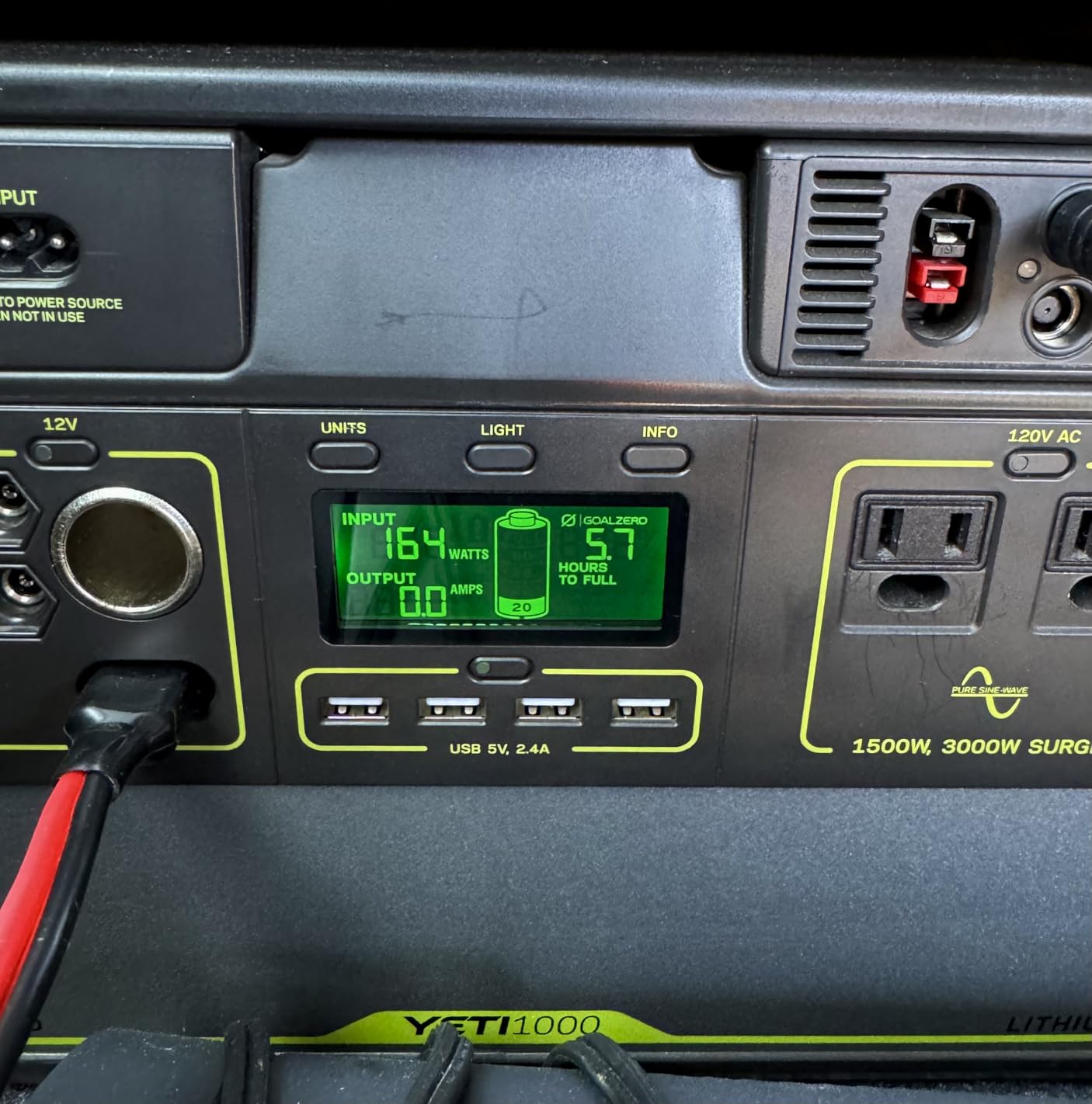

In full sunlight (with irradiance above 800W/m²), and with the portable solar panel 180W properly angled, its output power can reach over 150W. However, if the sunlight intensity is lower, such as when there are clouds obstructing the sunlight, the panel's output power will decrease.Generally, you can expect the rv solar panel to perform well in most situations, but it's important to consider that real-world conditions may result in lower power output than the maximum rated value
