ZOUPW N-Type 16BB 480W Bifacial Solar Panel

(0)

$649.99

Advanced Composite Material Surface

Delivers higher light transmission, stronger durability, and longer outdoor lifespan than traditional ETFE panels.

Custom cells with zero-cut technology

Eliminates micro-cracks from cell cutting for lower power degradation and long-term power stability.

Bifacial Solar Design

Generates power from both sides, increasing real-world output by up to 30% with reflected light.

Ultra-Lightweight, High Power Density

Only 22.5 lbs with an industry-leading 21.3 W/lb power-to-weight ratio.

High-Efficiency N-Type 16BB Technology

Improves current collection and conversion efficiency while reducing resistance losses.

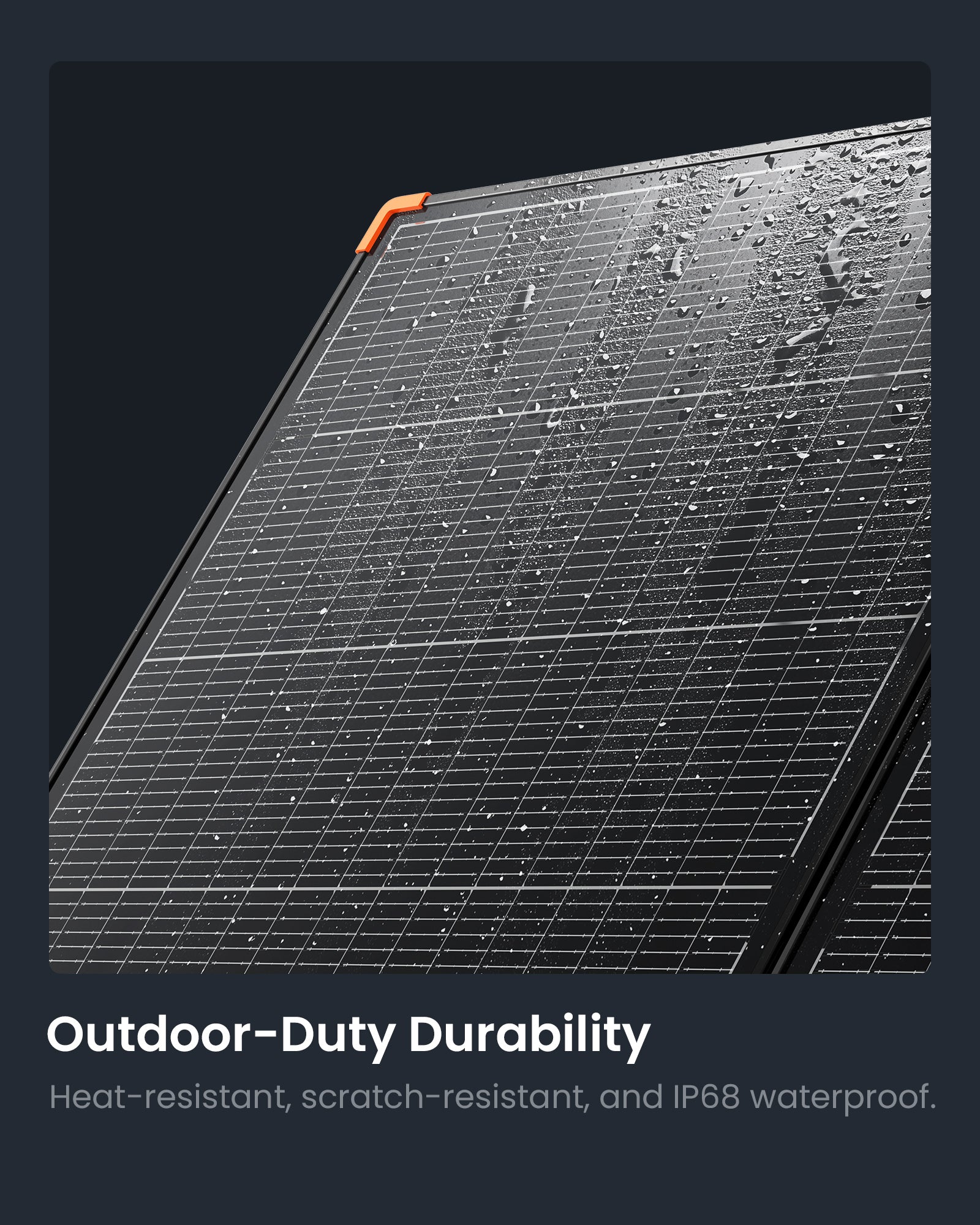

Built for Real Outdoor Use

IP68 waterproof design with stable output across heat, rain, and uneven sunlight.

New subscribers: use code zoupw10 for a discount.

Technical Specifications

  • Model

    ZP-DS480W

  • Maximum Power at STC (Pmax)

    480W

  • Maximum Power Voltage (Vmp)

    42.5V

  • Maximum Power Current (Imp)

    11.3A

  • Opencircuit Voltage (Voc)

    49.3V

  • Shortcircuit Current (Isc)

    12.0A

  • Cell Type

    Monocrystalline Silicon, N-Type 182mm

  • Frame

    Anodized Aluminium Alloy

  • IP Rating

    IP68

  • Power Tolerance

    0~5%

  • Operating Temperature Range

    -4°F ~ +140°F / -20°C ~ +60°C

  • Dimension

    138.58 in × 32.56 in × 3.35 in (3520×827×85mm)

  • Folded Dimension

    34.65 in × 32.56 in × 3.35 in (880×827×85mm)

  • Weight

    22.49 lb (equivalent to 10.2kg)

Connection & Compatibility

  • Supports DC8020, DC7909(8.0), XT60, Anderson and universal solar connectors.

  • Wide compatibility with power stations.

Dimensions

  • Dimension

    138.58 in × 32.56 in × 3.35 in (3520×827×85mm)

  • Folded Dimension

    34.65 in × 32.56 in × 3.35 in (880×827×85mm)

  • Weight

    22.49 lb (equivalent to 10.2kg)

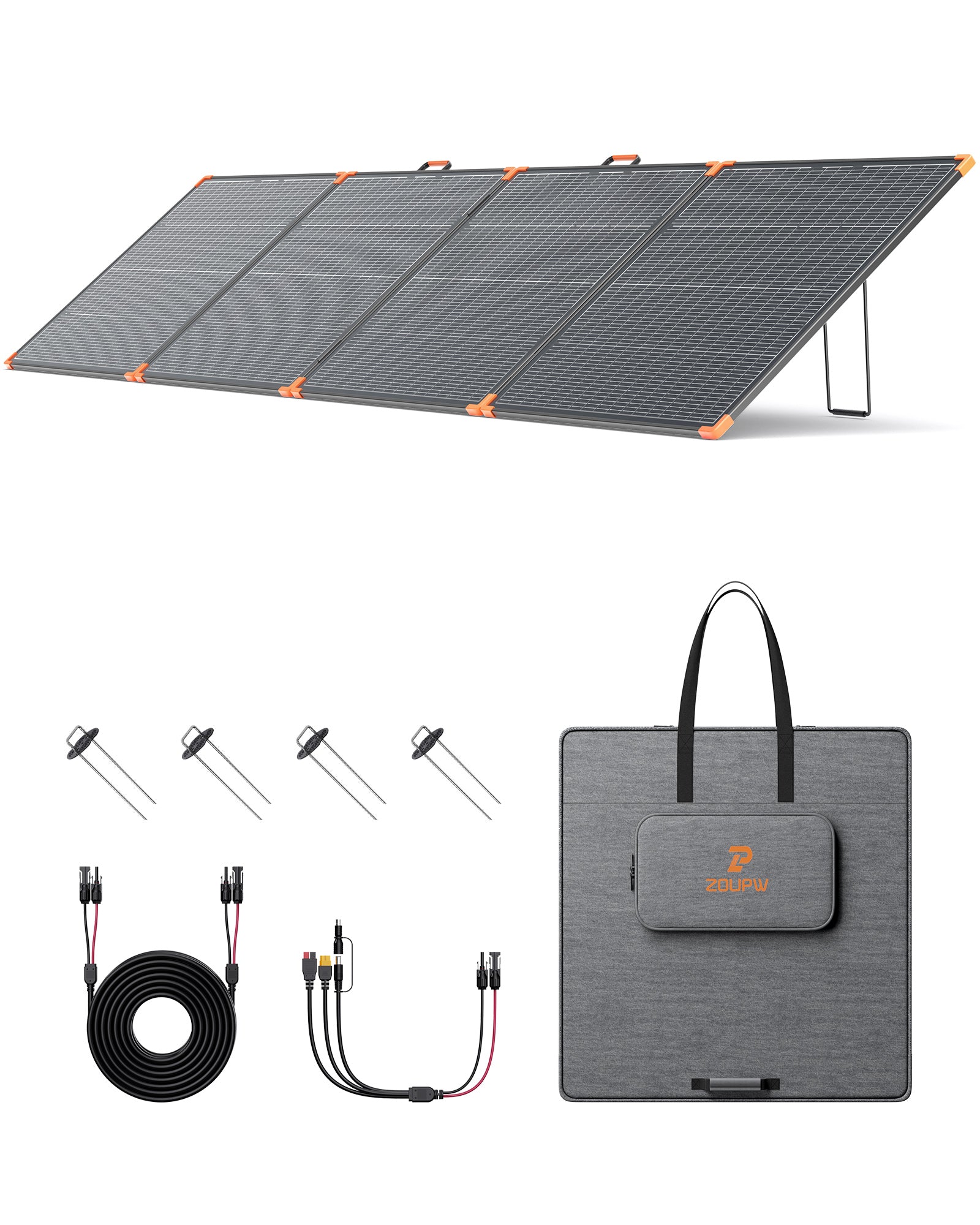

1. 480W Bifacial Foldable Solar Panel × 1 Pcs
2.Solar Connectors Extension Cable × 1 Pcs
3. Solar Connectors to DC7909(With DC8020 Adapter)/XT60/Anderson Cable × 1 Pcs
4. Storage Bag × 1 Pcs
5. User Manual × 1 Pcs
6. Ground Nail × 4

User Manual download

Free & Fast Shipping

30-Day Money back

Professional Support

Share

ZOUPW N-Type 16BB 480W Bifacial Solar Panel

ZOUPW N-Type 16BB 480W Bifacial Solar Panel

$649.99

$649.99

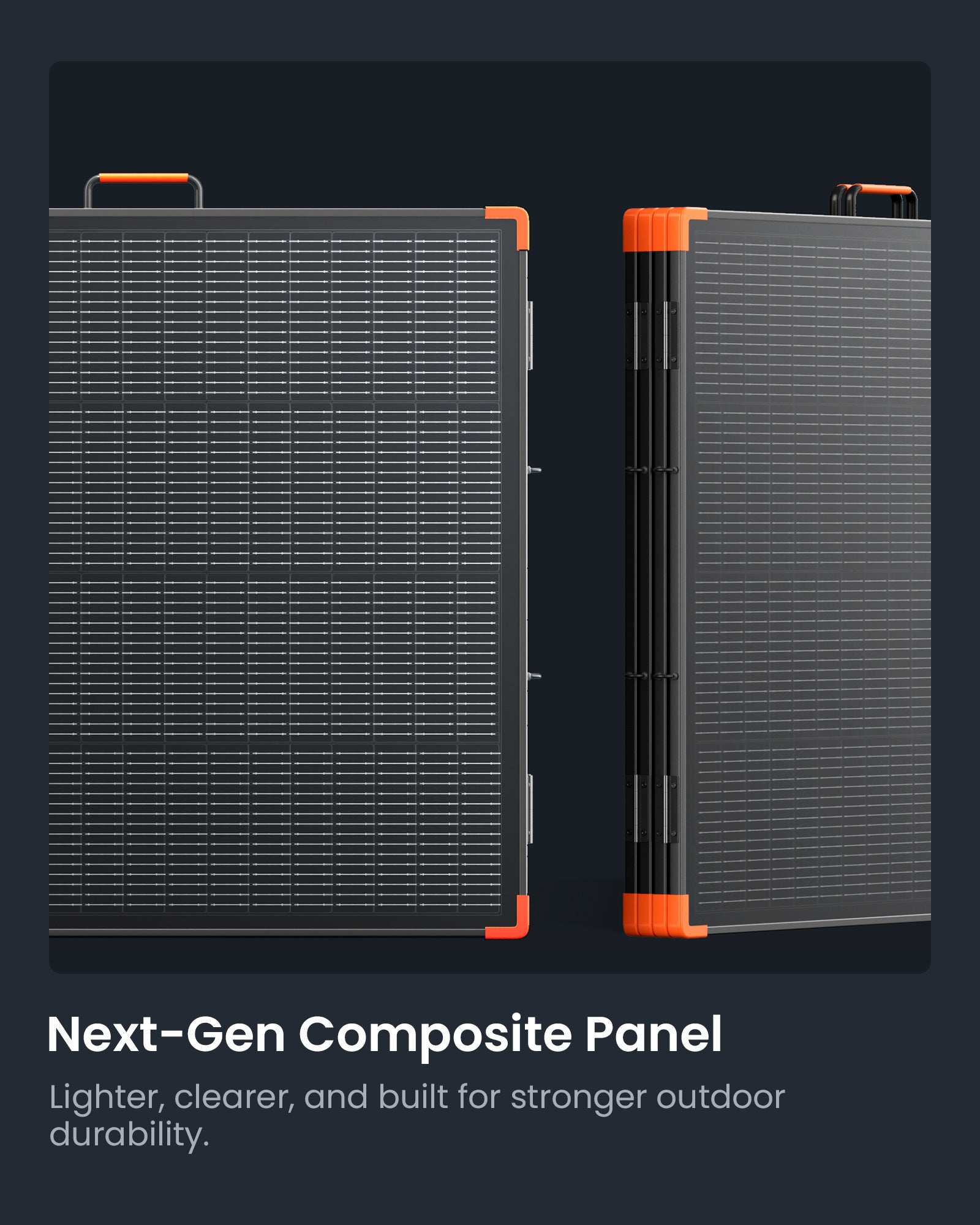

Industry-Leading Composite Solar Panel Design

The Zoupw 480W solar panel features an advanced composite material surface engineered to outperform traditional ETFE and laminated panels—delivering higher efficiency, longer lifespan, and superior durability in real-world outdoor conditions.

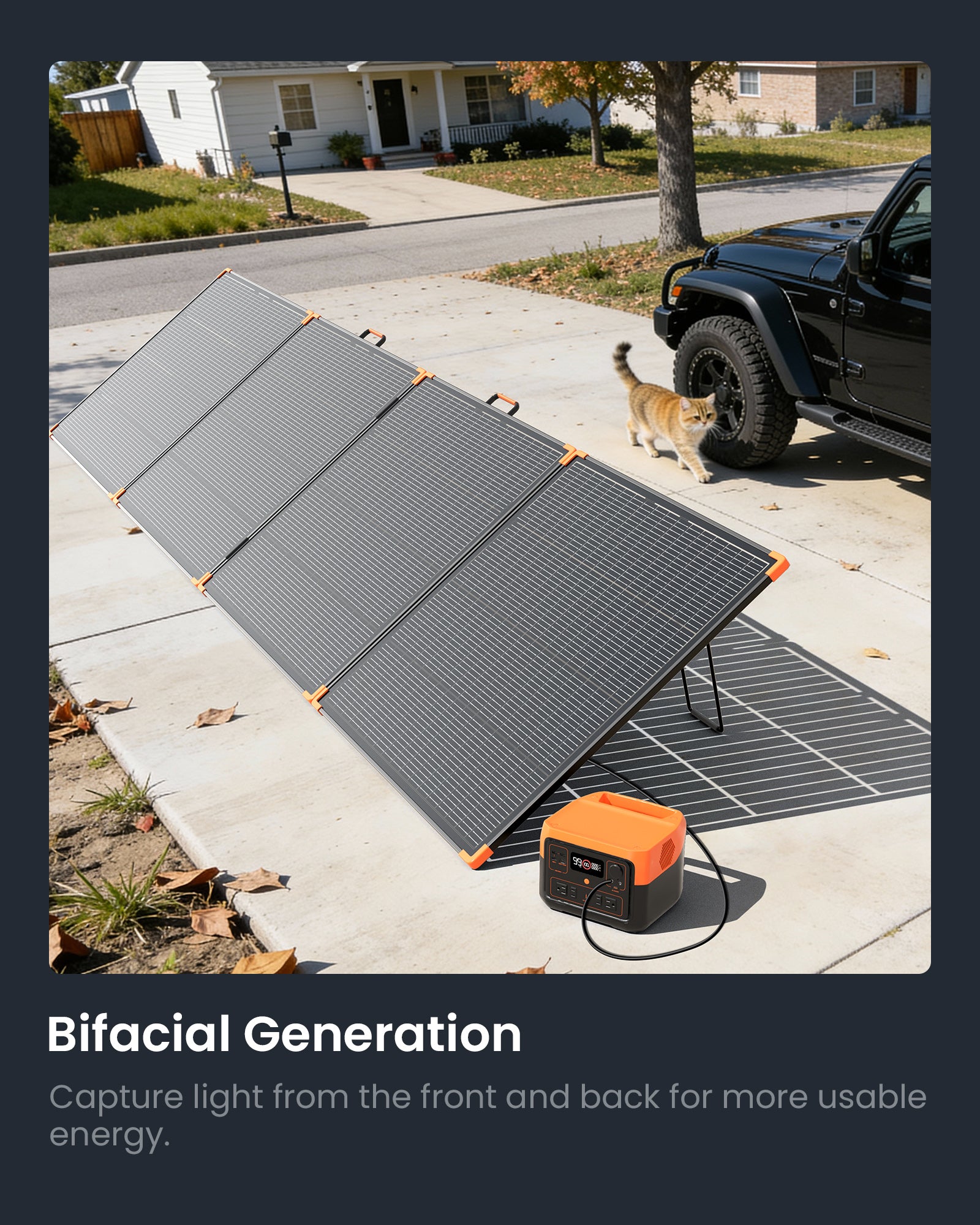

Industry-Leading 480W Bifacial Solar Power

Designed for serious off-grid users, the Zoupw 480W portable solar panel captures sunlight from both sides, increasing total energy generation by up to 30%. Under optimal conditions, rear-side light reflection can boost output by an additional 144W, delivering exceptional real-world performance.


Zero-Cut Custom Cell Technology

Unlike conventional cut-cell panels, Zoupw uses custom zero-cut N-Type cells that eliminate micro-cracks caused by mechanical cutting—delivering stronger cell integrity, lower degradation, and longer service life.

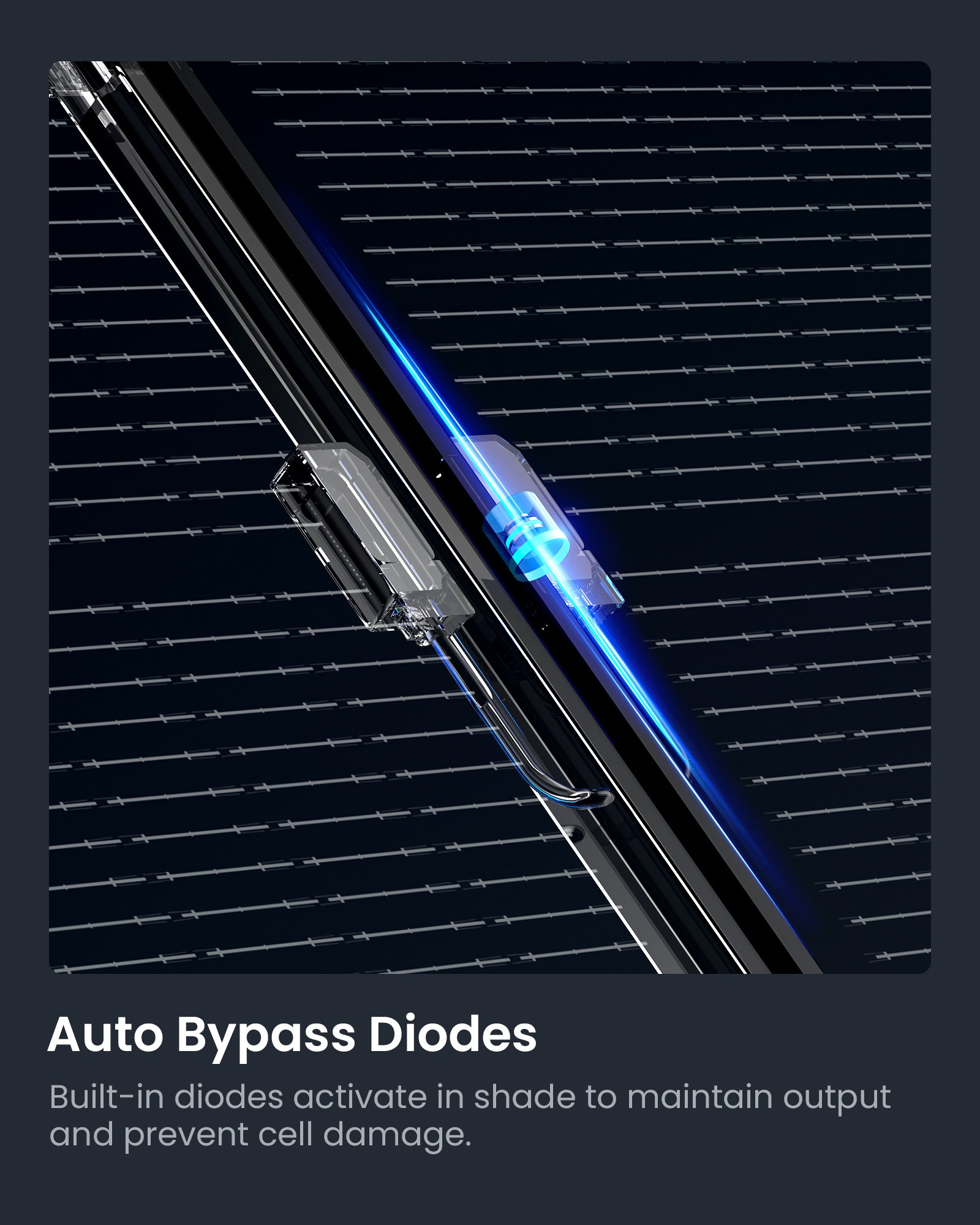

Built-In Auto Bypass Diodes

Integrated auto bypass diodes automatically activate under partial shading to maintain power output, reduce energy loss, and prevent hotspot damage—ensuring safe and reliable operation in real-world outdoor conditions.

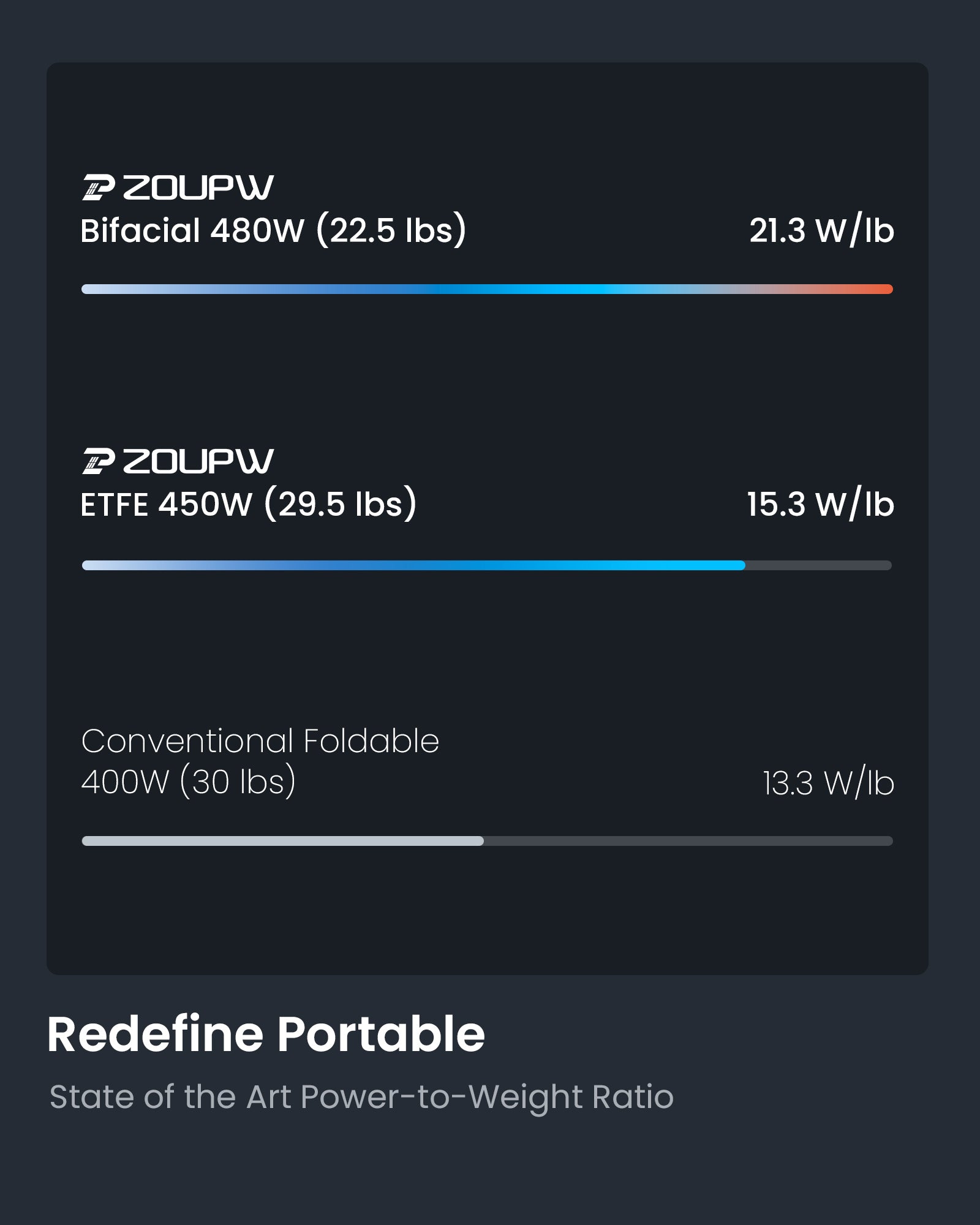

Lightweight Composite Design with Superior Power-to-Weight Ratio

At just 22.5 lbs, this 480W solar panel delivers an industry-leading 21.3 W/lb, making it easier to transport, set up, and reposition than traditional foldable panels—without sacrificing power.

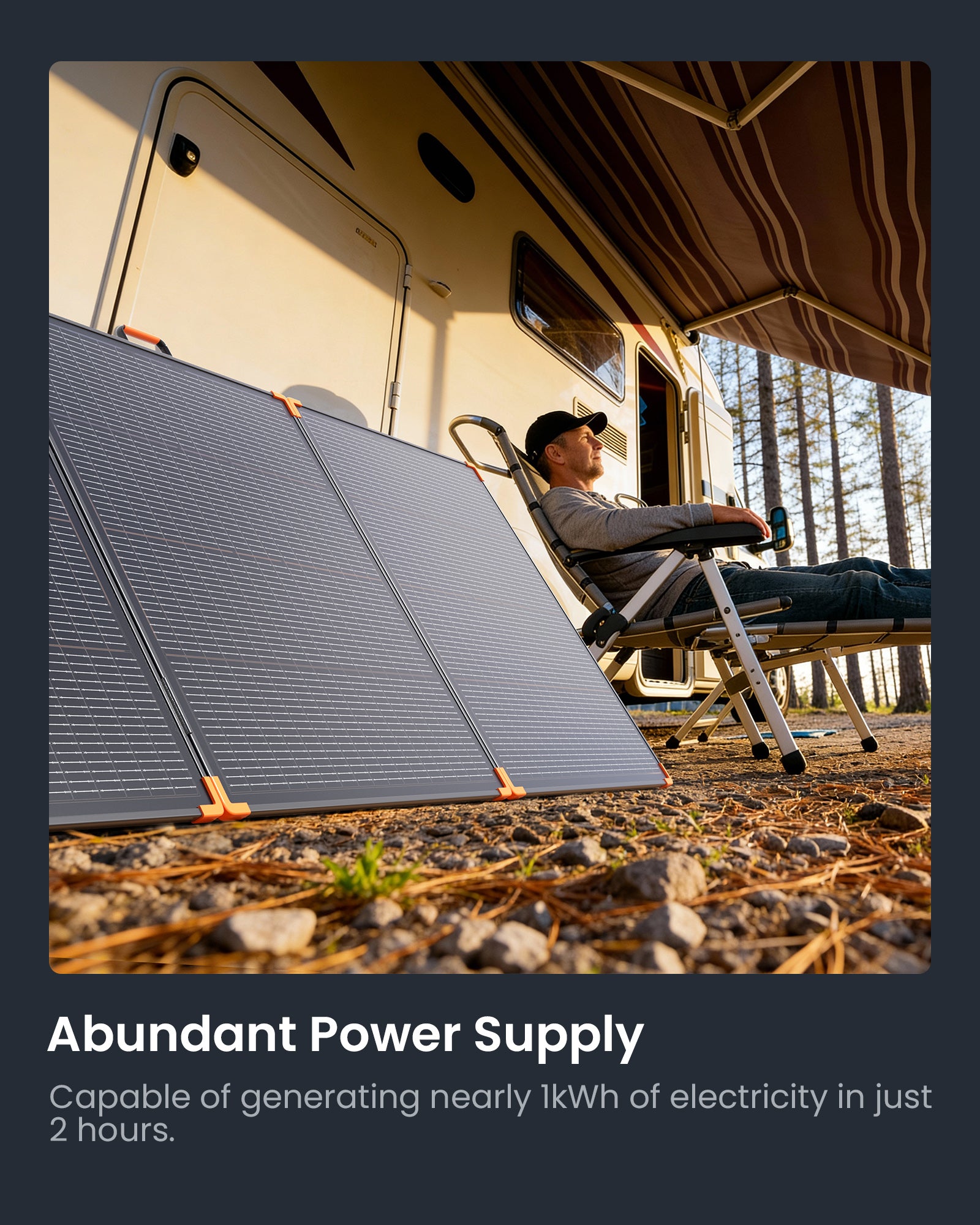

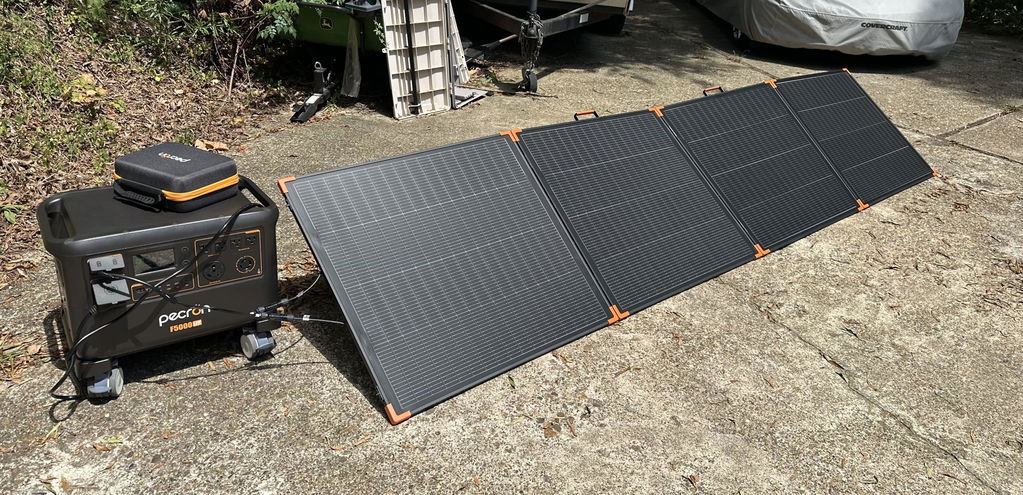

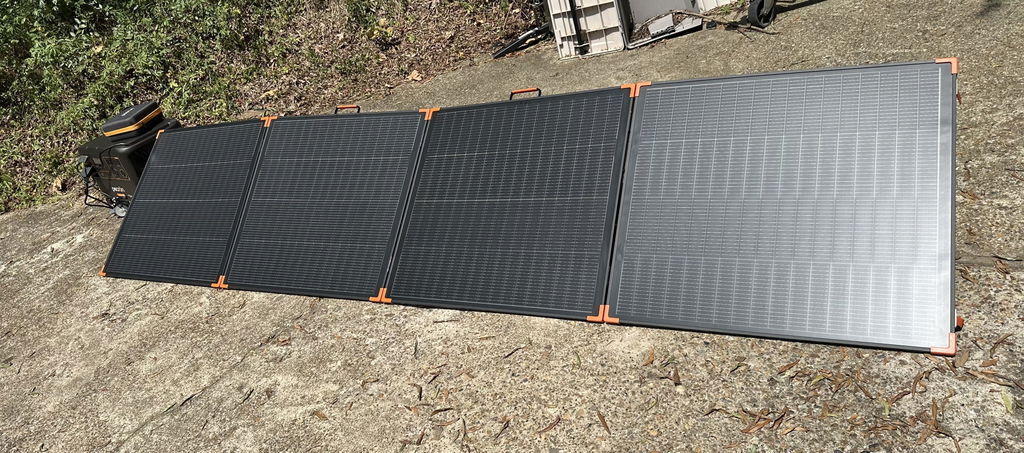

Folding Solar Panel for RV, Camping & Home Backup

FAQS About ZOUPW N-Type 16BB 480W Bifacial Solar Panel


This panel uses an advanced composite structure that offers higher light transmission, better scratch resistance, and improved heat stability—resulting in longer lifespan and more consistent outdoor performance.


Zero-cut technology uses full-size custom N-Type cells without mechanical cutting, eliminating micro-cracks that cause power loss and shorten panel lifespan.


The bifacial design captures sunlight from both the front and rear sides. Reflected light from the ground or surroundings can increase total energy output by up to 30%.
