110 watt Foldable Solar Panel 10BB

(0)

$149.99

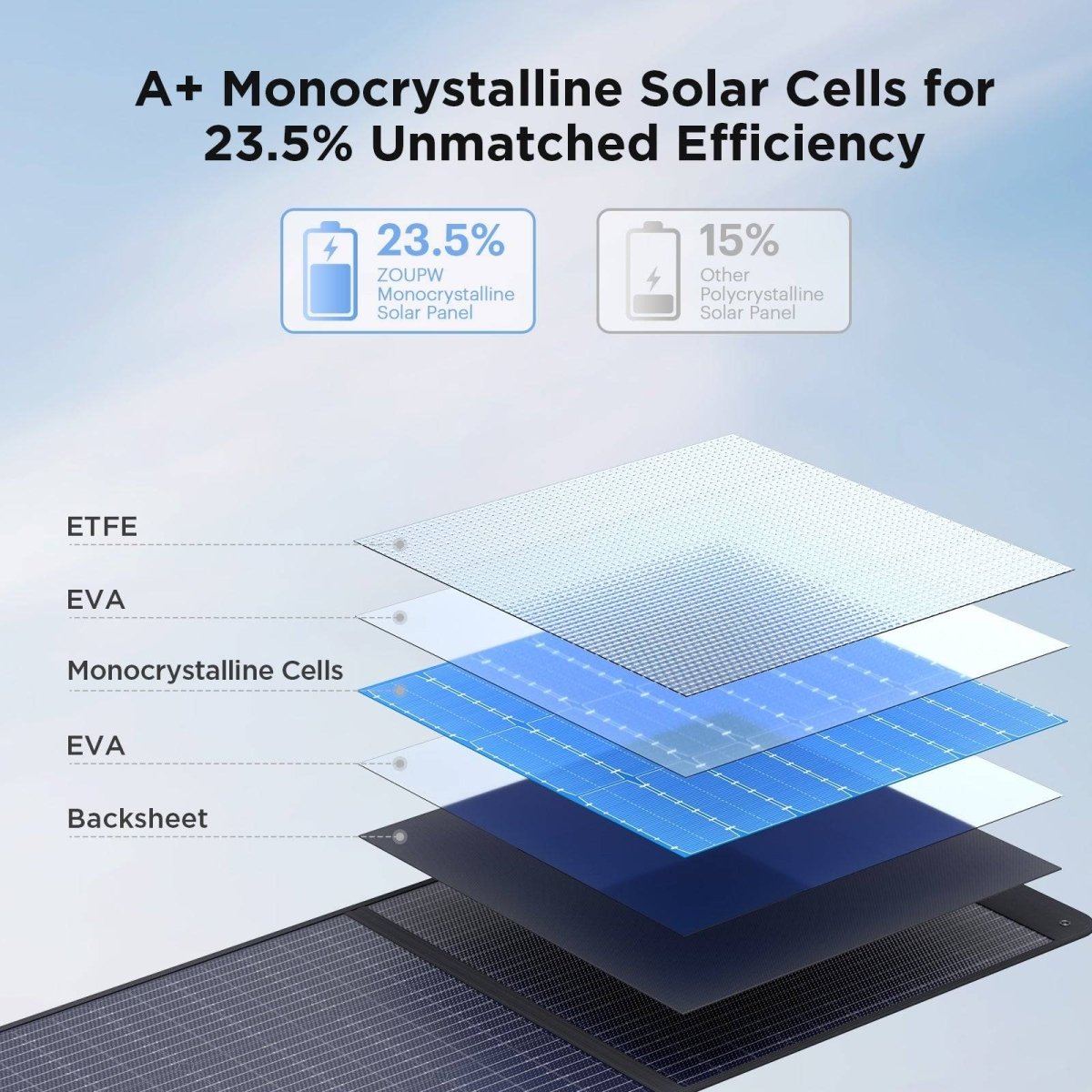

  • Premium A+ monocrystalline silicon solar cells with 23.5% conversion efficiency.
  • ETFE-surface: waterproof, dustproof, durable.
  • Portable ,foldable and easy setup.
  • Wide compatibility with power stations, smartphones, tablets, and more.
  • Suitable for outdoor, camping, and RV use.
  • 1-year warranty.

Technical Specifications

  • Maximum Power at STC (Pmax)

    110W

  • Maximum Power Voltage (Vmp)

    18.6V

  • Maximum Power Current (Imp)

    5.95A

  • Opencircuit Voltage (Voc)

    22.28V

  • Shortcircuit Current (Isc)

    6.3A

  • Cell Type

    Monocrystalline Silicon, PERC 10BB 182

  • IP Rating

    IP67

  • Cell Efficiency

    23.5%

  • Operating Temperature Range

    14°F ~ 158°F/-10°C ~ 70°C

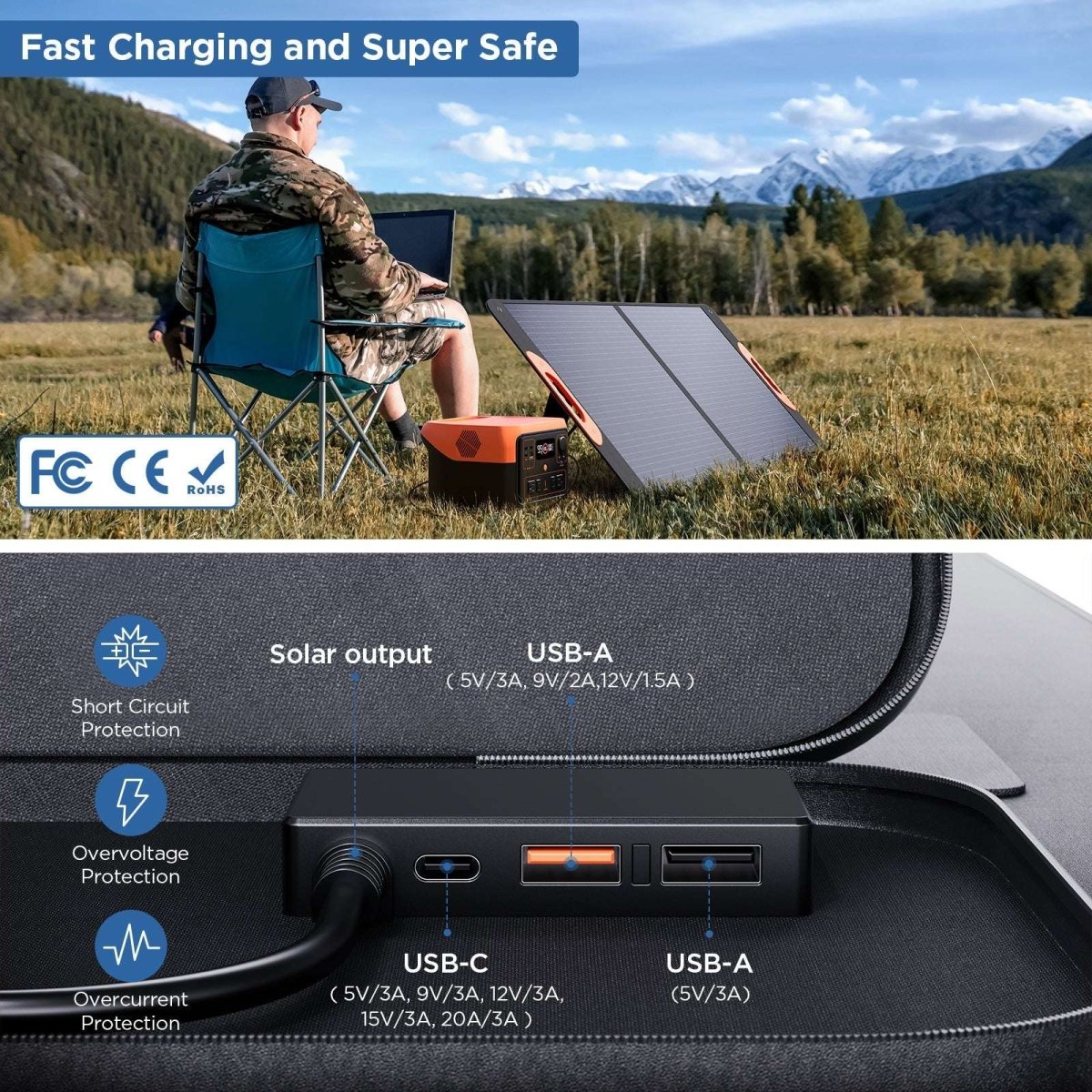

Connection & Compatibility

  • USB-A Output (Black)

    5V/3A

  • USBA Output (Orange)

    5V/3A, 9V/2A

  • TypeC Output

    5V/3A, 9V/3A, 12V/3A, 15V/3A

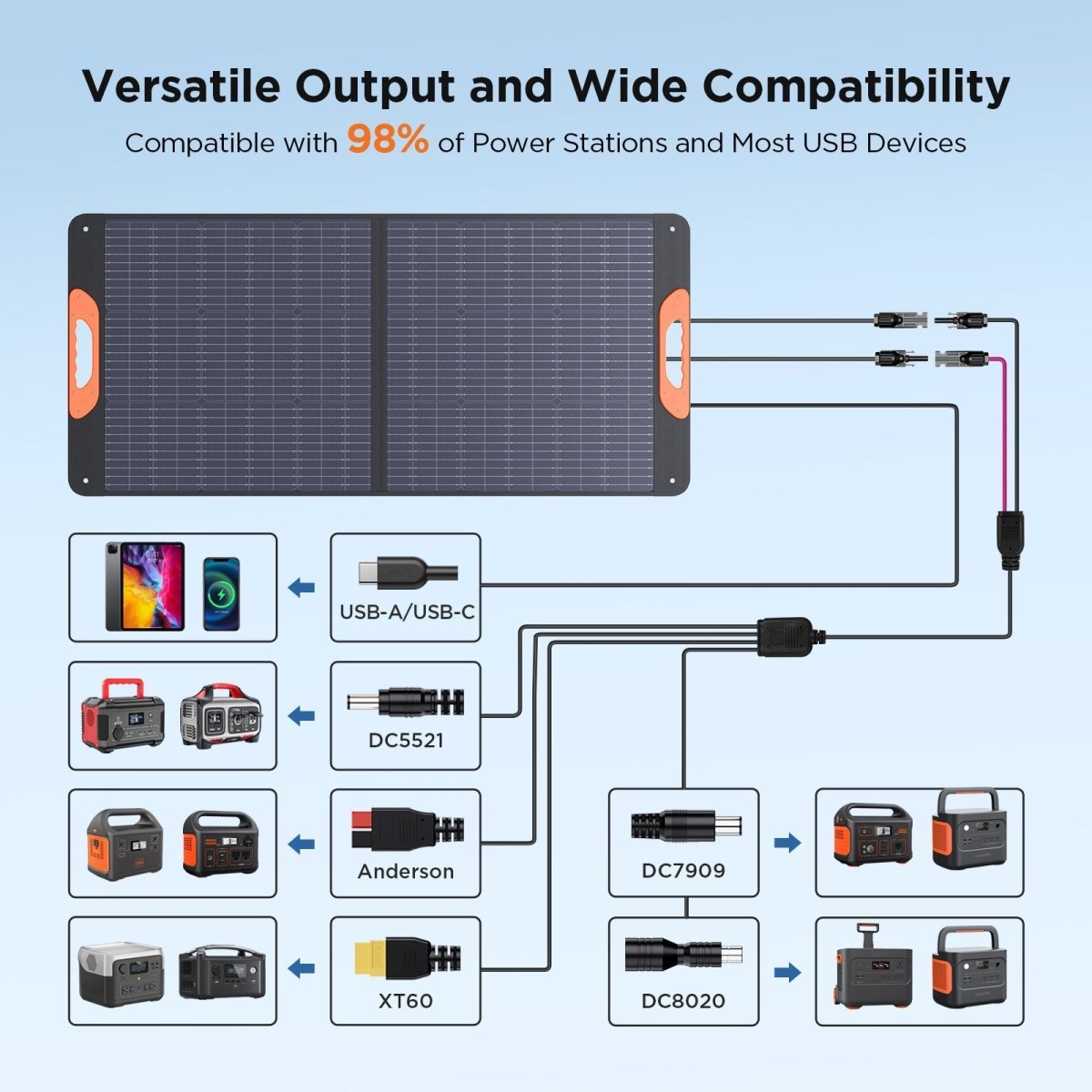

  • Supports DC8020, DC7909,DC5521, XT60, and Anderson connectors.

  • Wide compatibility with power stations, smartphones, tablets, and more.

  • Supports series and parallel connections for increased power.

Dimensions

  • Unfolded Dimensions

    47.56*22.9*1.18 IN/1208 × 582 × 30 mm

  • Folded Dimensions

    23.7*22.9*1.57 IN/602 × 582 × 40mm

  • Weight

    4.34 ± 0.1kg/9.57 LBS

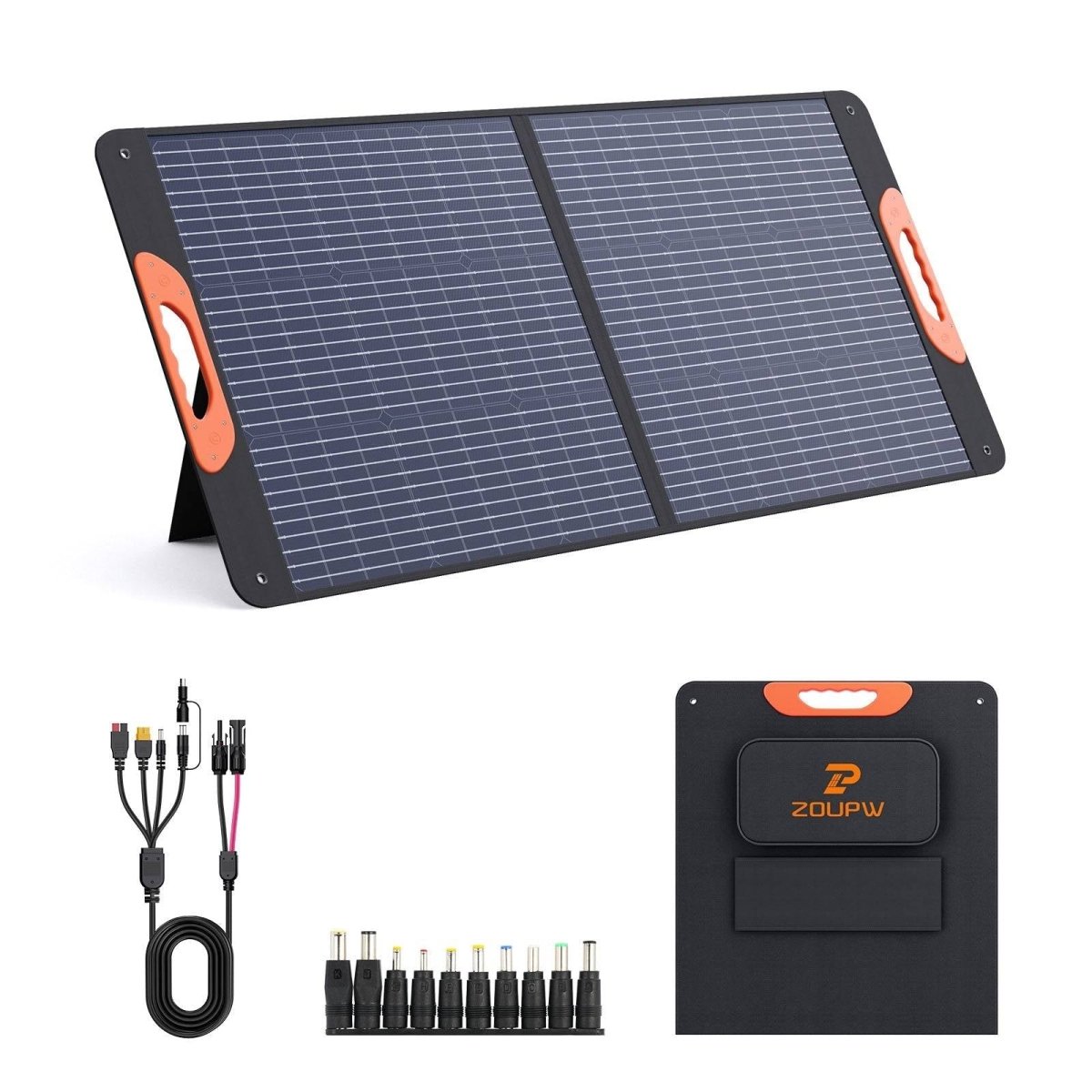

1. 110W Foldable Solar Panel × 1
2. 3 Meters MC-4 to DC5521 / DC7909 (With DC8020 Adapter) / XT60 / Anderson Output Cable × 1
3. DC5521 (Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955 (Male) Adapters Set × 1
4. User Manual × 1

User Manual download

Free & Fast Shipping

30-Day Money back

Professional Support

Share

110 watt Foldable Solar Panel 10BB

110 watt Foldable Solar Panel 10BB

$149.99

$149.99



Multiple usage scenarios

FAQS About 110 watt Foldable Solar Panel 10BB

To ensure excellent charging performance and outstanding conversion efficiency, we use high-quality, full-capacity A+ grade monocrystalline silicon cells, which bring the weight of this solar panel to 9.57 lbs. As a result, it might not be suitable for extended backpacking or hiking trips, but it is ideal for camping, RV travel, and emergency power backup.

First, please carefully confirm before placing an order whether your portable power station's solar input port is compatible with any of the adapters we provide (XT-60, Anderson, DC7909, DC5521, DC8020). If you're unsure, feel free to consult with us beforehand. Additionally, if you receive the solar panel and find it incompatible with your portable power station, please let us know—we’ll help resolve the issue for you.

The actual output power of a 110W solar panel is typically lower than its rated power due to several factors:

Solar Irradiance: Rated power is measured under Standard Test Conditions (STC), which assume optimal conditions: 1000W/m² of sunlight, a panel temperature of 25°C, and direct sunlight. In real conditions, sunlight intensity is often lower due to cloud cover, time of day, or geographical factors, leading to reduced output.

Temperature: Solar panels lose efficiency as their temperature rises. High temperatures cause a decrease in output power, as most panels have a negative temperature coefficient, meaning their output decreases as the temperature increases.

Angle and Orientation: If the solar panel is not positioned to directly face the sun or at the optimal angle, it will receive less sunlight, resulting in lower output.

Panel Aging: Over time, solar panels degrade, and their efficiency decreases.

Shading: Even partial shading (from trees, buildings, etc.) can significantly reduce a panel's output, as it affects the entire panel's performance.
