ZOUPW 160W Lightweight Portable Solar Panel | Foldable N-Type 16BB
Technical Specifications
-
ZP-QB160W
-
SKU
ZP160W-3LS1V1-US/ZP160W-3LS2V1-US
-
Max Power (Pmax)
160W
-
Max Power Voltage (Vmp)
20.60V
-
Max Power Current (Imp)
7.76A
-
Opencircuit Voltage (Voc)
23.5V
-
Shortcircuit Current (Isc)
8.22A
-
Power Tolerance
0~5%
-
Operating Temp
14°F~158°F
-
Solar Connector
Reverse Charge Protection
Connection & Compatibility
-
5V/3A
-
USBA Output (Orange)
5V/3A, 9V/2A, 12V/1.5A
-
TypeC Output
5V/3A, 9V/3A, 12V/3A, 15V/3A
-
Supports DC8020, DC7909,DC5521, XT60, and Anderson connectors.
-
Wide compatibility with power stations, smartphones, tablets, and more.
-
Supports series and parallel connections for increased power.
Dimensions
-
30.75×22.91×1.18 IN (781×582×30 mm, ±5mm)
-
Folded Dimensions
21.65×22.91×1.97 IN (550×582×50 mm, ±5mm)
-
Weight
11.22 lbs (5.09 kg, ±1.1 lbs)
Share
Durable & High-Efficiency Power
This N-Type 16BB solar panel features a rugged ETFE surface, dual EVA layers, and high-grade monocrystalline cells for up to 25% efficiency. Engineered for long-lasting durability and superior energy output in all outdoor conditions.
High-Efficiency 160W Solar Power for Outdoor Freedom
Zoupw 160W foldable solar panel delivers reliable off-grid energy wherever you go—ideal for camping, RVs, hiking, and emergency backup. Featuring A+ monocrystalline cells with up to 25% conversion efficiency, it captures more sunlight and charges your devices faster, even in low-light conditions.
Universal Compatibility with Power Stations & Devices
This panel supports a wide range of portable power stations and DC devices using DC5521, Anderson, XT60, DC7909, and DC8020 connectors.
It also includes built-in USB-A and USB-C ports, allowing direct charging for phones, tablets, cameras, and more—no power station needed.
Portable Foldable Solar Panel – Outdoor-Ready, High Efficiency, IP67 Waterproof
Designed for camping, RV trips, and off-grid adventures, this portable foldable solar panel delivers reliable clean energy wherever you go. Built with a durable outdoor-ready design, it offers long-lasting performance, IP67 waterproof protection, dust resistance, and quick, easy setup. Perfect for powering your devices and solar generators in the wild.
FAQS About ZOUPW 160W Lightweight Portable Solar Panel | Foldable N-Type 16BB
You can store them just about anywhere in a Car, RV or behind a bedroom door.

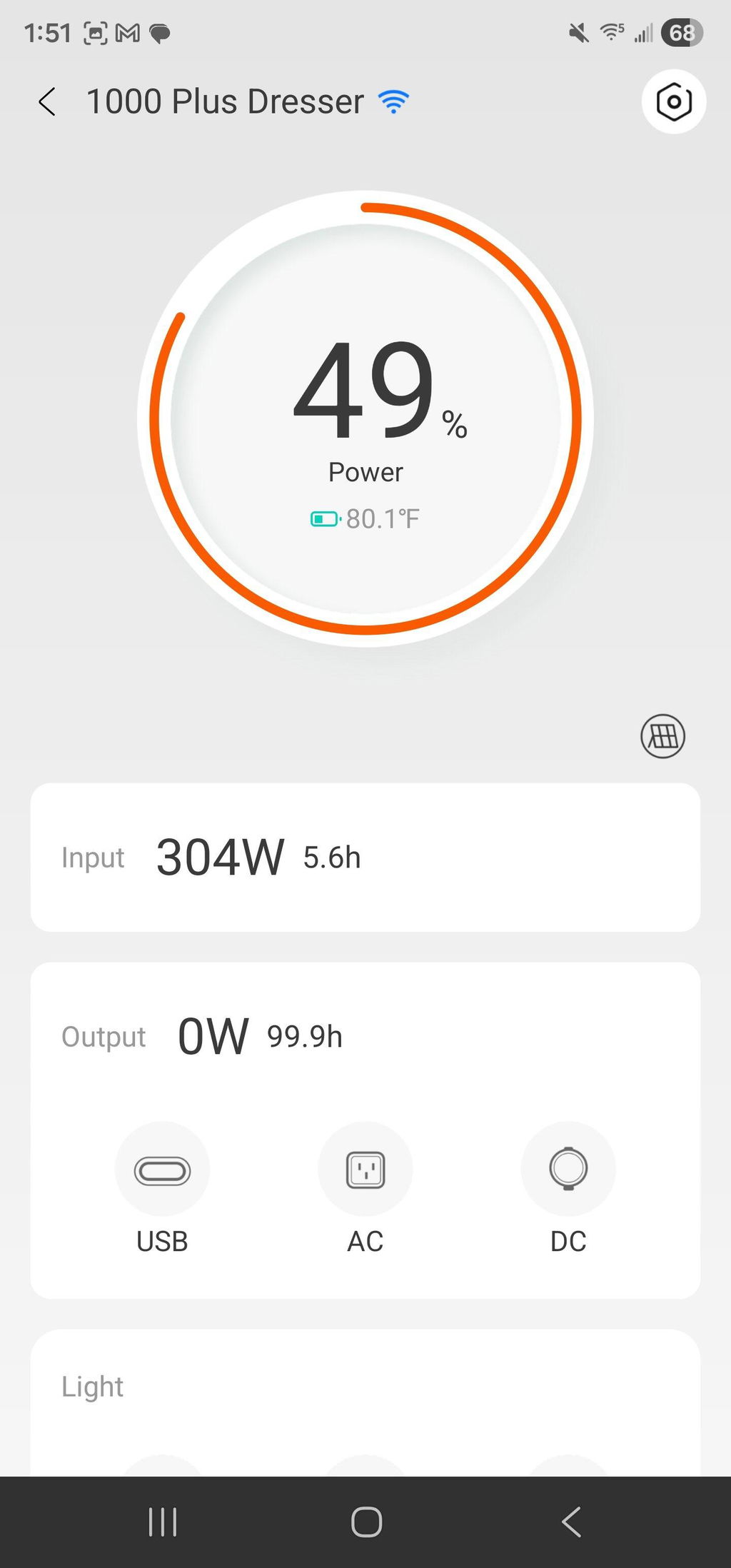

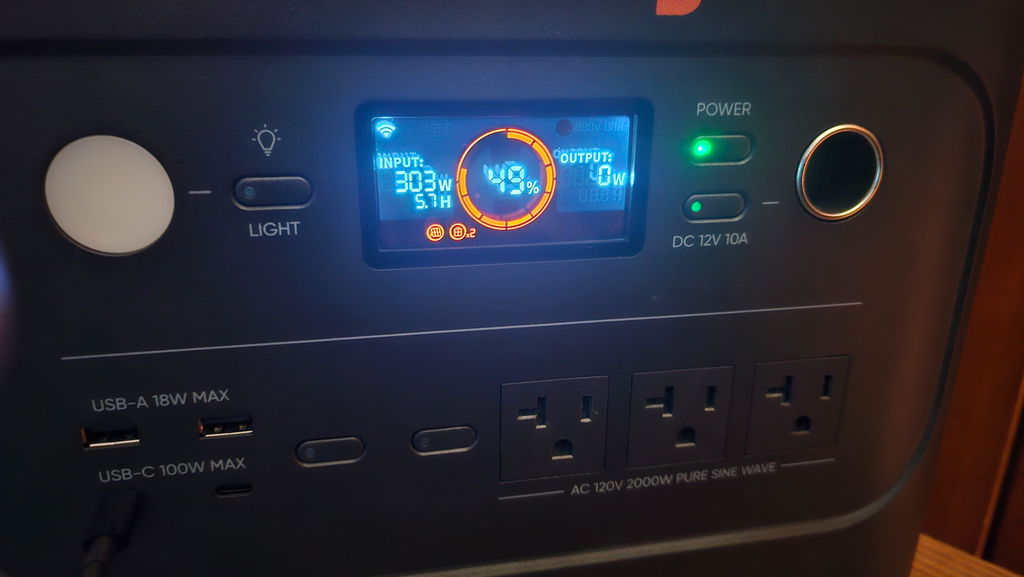

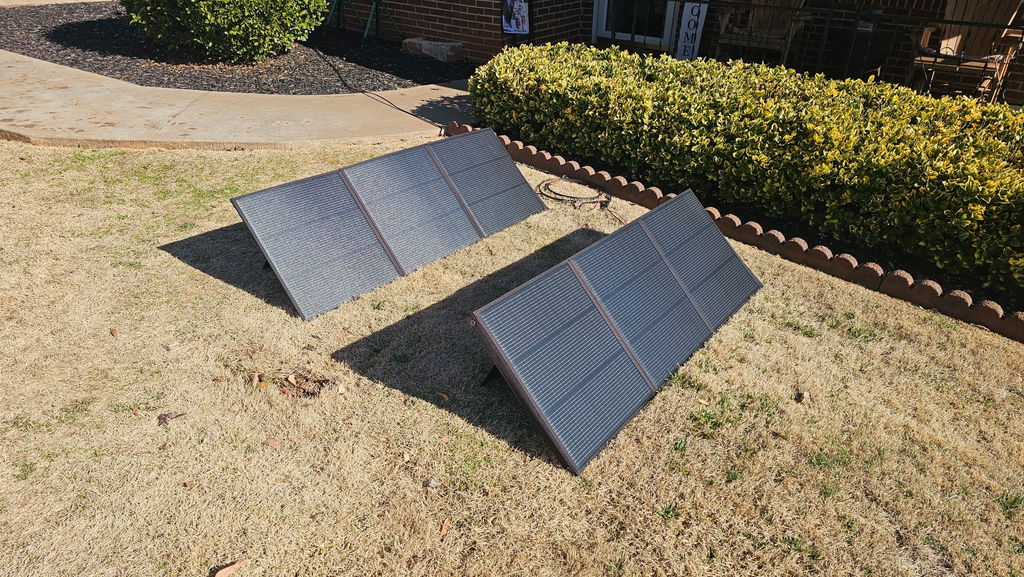

From Noon till 2 pm the Average output was 297-302 watts for those hours and it's winter here now. In summer with the sun overhead I can see these panels exceeding their rating of 160 watts and I can't wait to test them out in optimal sun conditions.
I really like how the built in cables are just long enough for both panels to be connected either side by side or back to back which means you don't have to buy any extra extensions to hook them up together in series.
For Performance, Output and Price I can't think of any other brands or models that come close.
This is an outstanding panel and I highly recommend it for anyone that needs output in the 300 watt range. With two of these you can easily achieve that in the middle of the day.
Another well built and thoughtfully designed product from ZOUPW 👍
This is the best color panel that I have ever owned. Construction is great and easy to use.

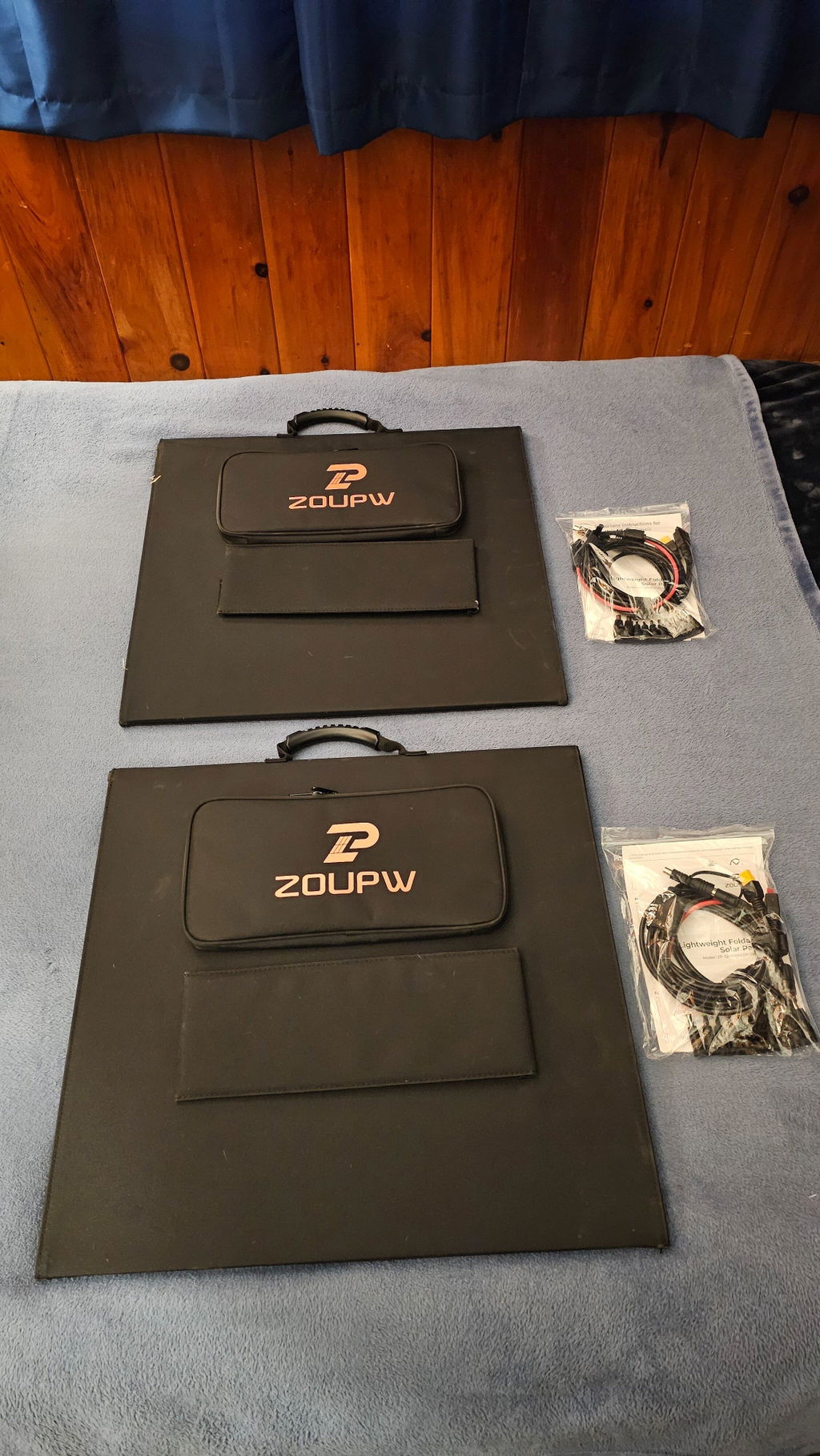

These are very nice panels and they came with all necessary cables and connectors. The 160W tri-fold panels are a little tricky for one person to set up, and the stands want to keep snapping back to the panel, but those are minor things. I had a small glitch with order fulfillment, but customer service rapidly fixed that. Highly recommend.
