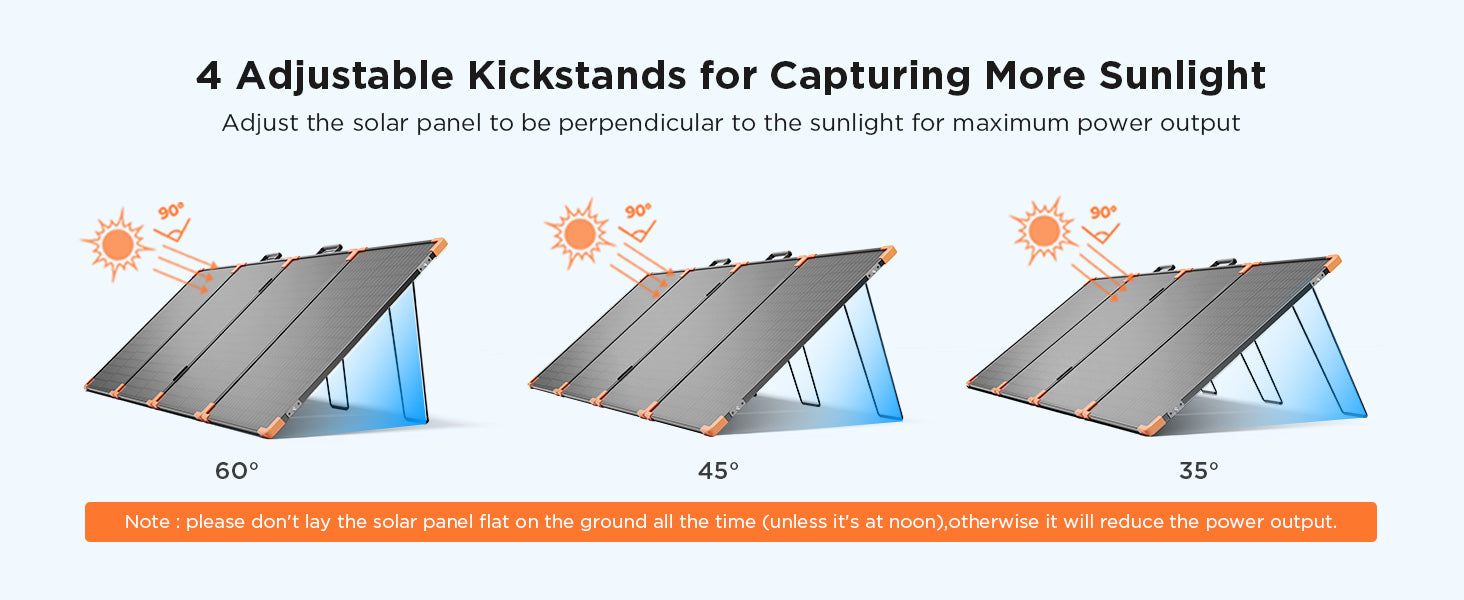

In full sunlight (with irradiance above 800W/m²), and with the foldable solar panel 200w properly angled, its output power can reach over 160W. However, if the sunlight intensity is lower, such as when there are clouds obstructing the sunlight, the panel's output power will decrease.Generally, you can expect the portable solar panels for camping to perform well in most situations, but it's important to consider that real-world conditions may result in lower power output than the maximum rated value

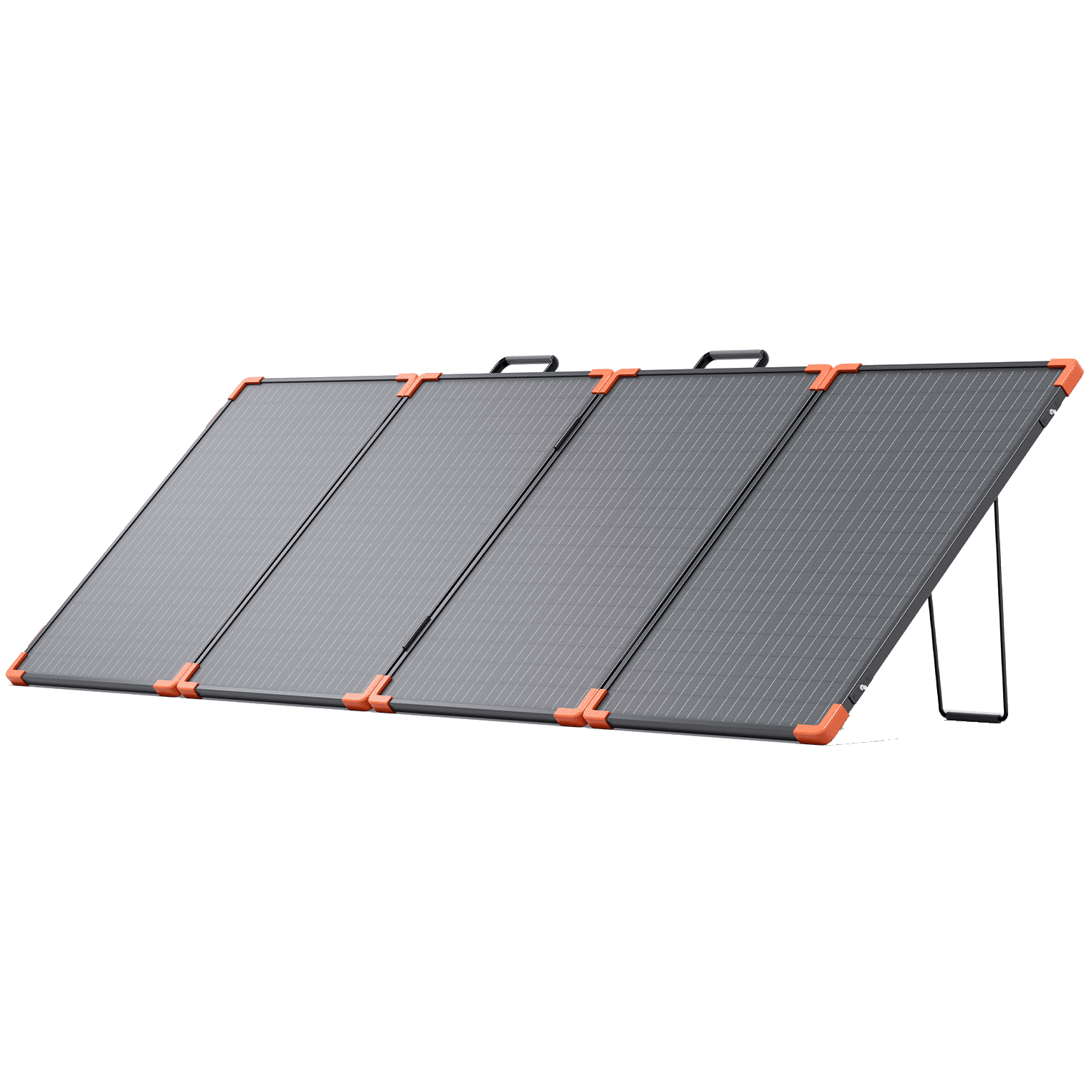

ZOUPW 200W Portable Solar Suitcase | Built-in 20A PWM Controller
20599
$205.99
Unit price per
Online Exclusive Discount
AUG8
Free & Fast Shipping
30-Day Money back
Professional Support
Shipping Method
Delivery time: 3-8 business days
Perfectly Compatible With
Simply plug & play using included adapters.
* Note: Only popular models are listed above. If your power station's input voltage, current, and port type match this panel's specs, it will work perfectly too! Still unsure? Contact us.
See It In Action
Share
20599
$205.99
Unit price per200W High-Efficiency Folding Solar Kit for RVs
ZOUPW 200 watt solar suitcase with 20A PWM Controller for Power Station & 12V Batteries,23.5% High Efficiency Aluminum Frame Folding Solar Panel for RV Camping.
Tempered Glass RV Solar Panel Withstands Harsh Conditions
Built with durable tempered glass, this RV solar panel withstands harsh conditions. Featuring an IP67 waterproof rating, 2400Pa max wind load, and 5400Pa max snow load, it ensures reliable, heavy-duty off-grid power for winter camping and extreme outdoor environments.

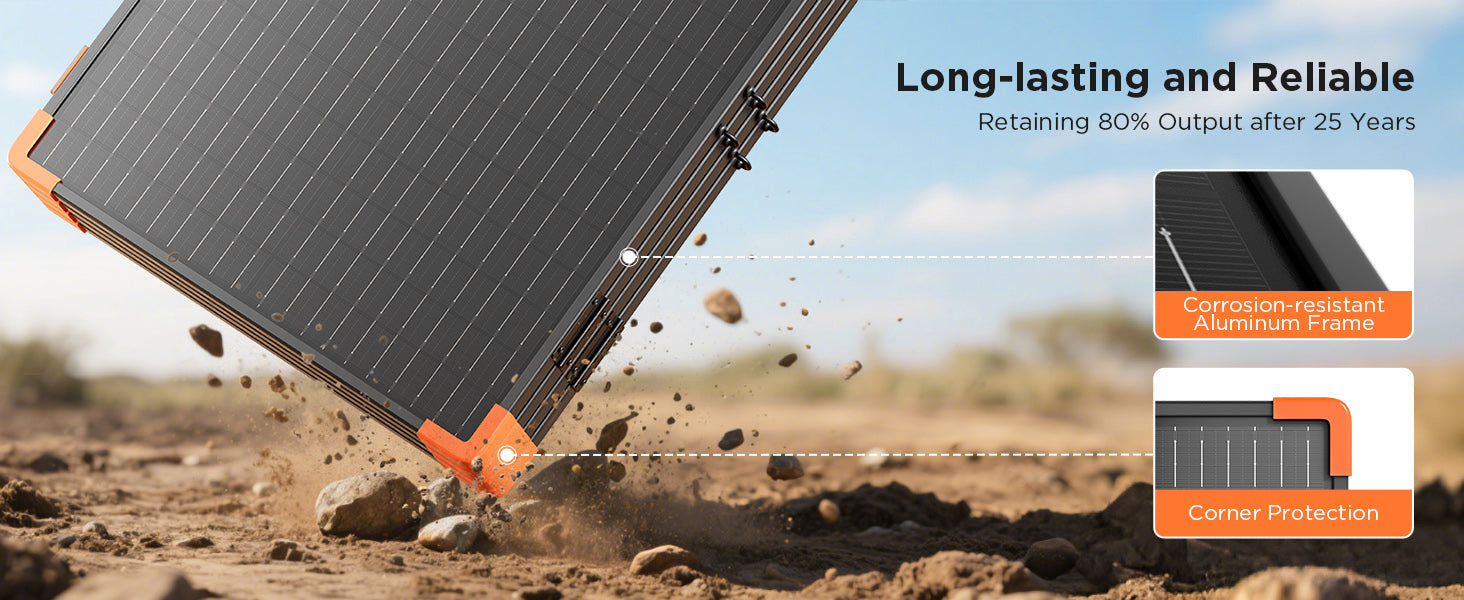

Heavy-Duty Construction with Long-Lasting Reliability

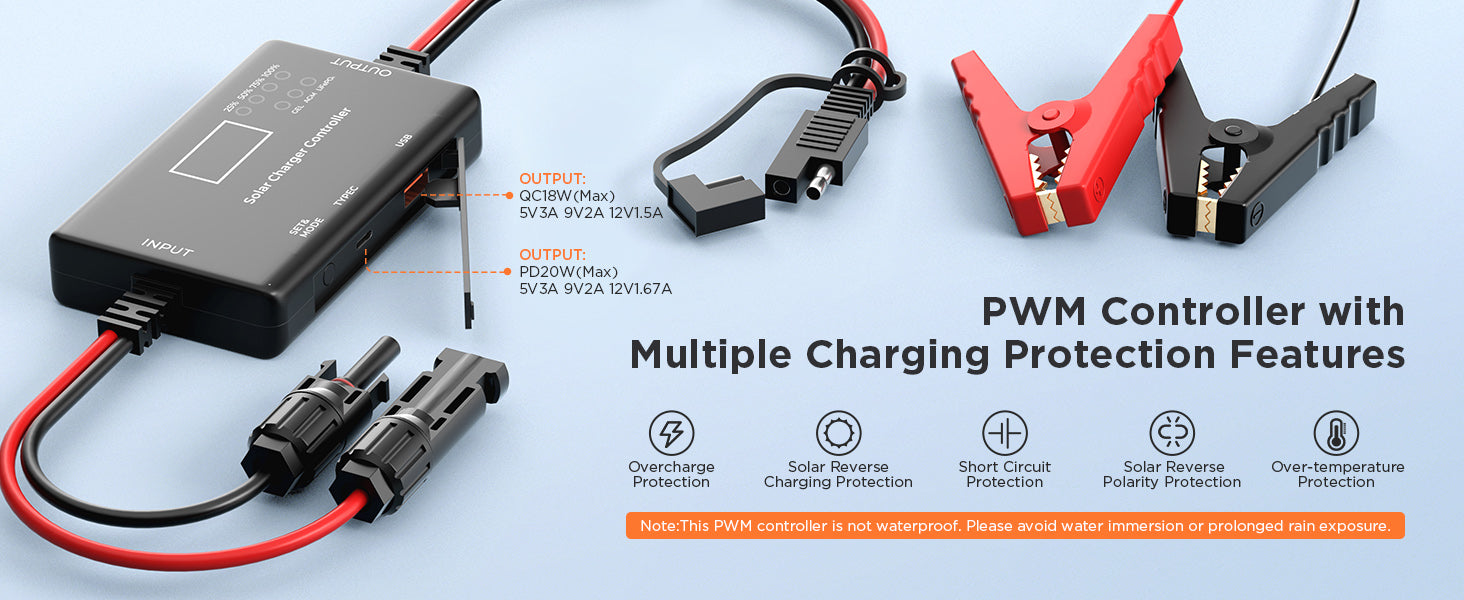

we provide a complimentary 20A PWM charge controller and SAE-alligater clip cable
1.Connect the SAE-Alligator Clip Cable to the PWM Controller
2.Connect the battery, attach the positive terminal first, followed by the negative terminal and then connect the PWM controller to the solar panel portable
Note: The PWM controller is not waterproof. Please avoid submerging it in water or exposing it to rain for extended periods.

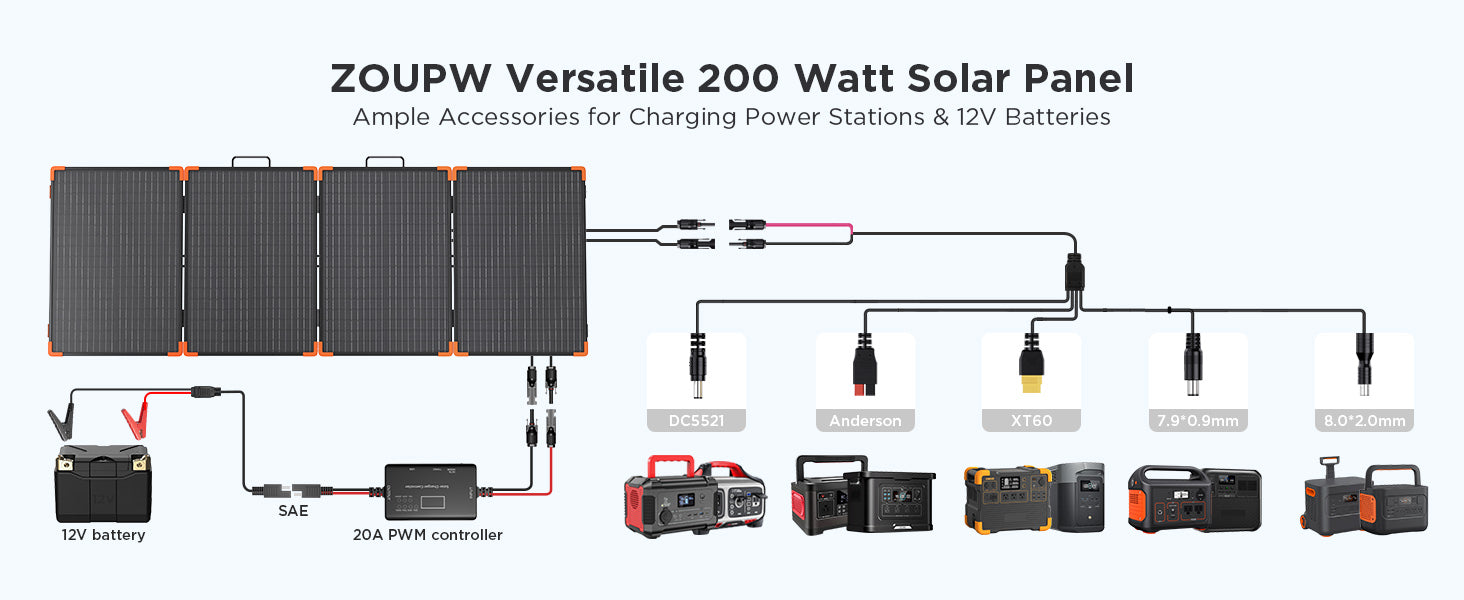

Extensive Accessories for Charging Various Power Stations & 12V Batteries

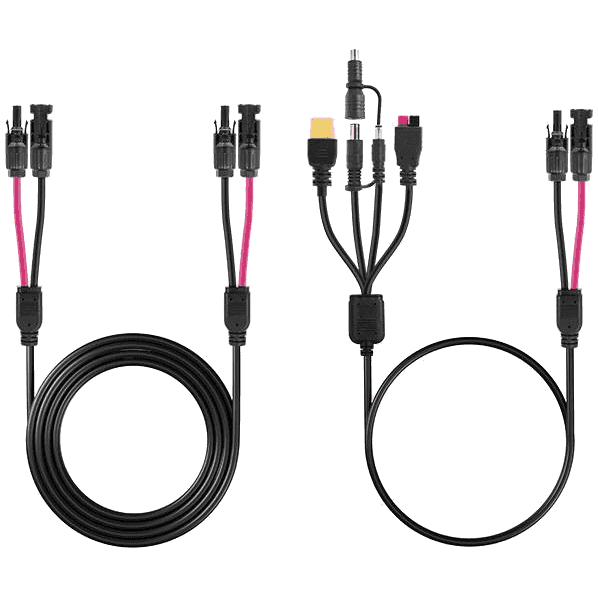

you can use the 5-in-1 solar cable that comes with this solar panel 100 watt
Meanwhile, there is a complimentary 10 in 1 DC adapter DC5521 (Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955(Male) to expand the folding solar panel's compatibility.
1. Power Station Compatibility
Please Note: Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100 watt solar suitcase in optimal sunlight conditions, the power it receives won't exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.
For 12V batteries
we provide a complimentary 20A PWM charge controller and SAE-alligater clip cable
1.Connect the SAE-Alligator Clip Cable to the PWM Controller
2.Connect the battery, attach the positive terminal first, followed by the negative terminal and then connect the PWM controller to the solar panel portable
Note: The PWM controller is not waterproof. Please avoid submerging it in water or exposing it to rain for extended periods.

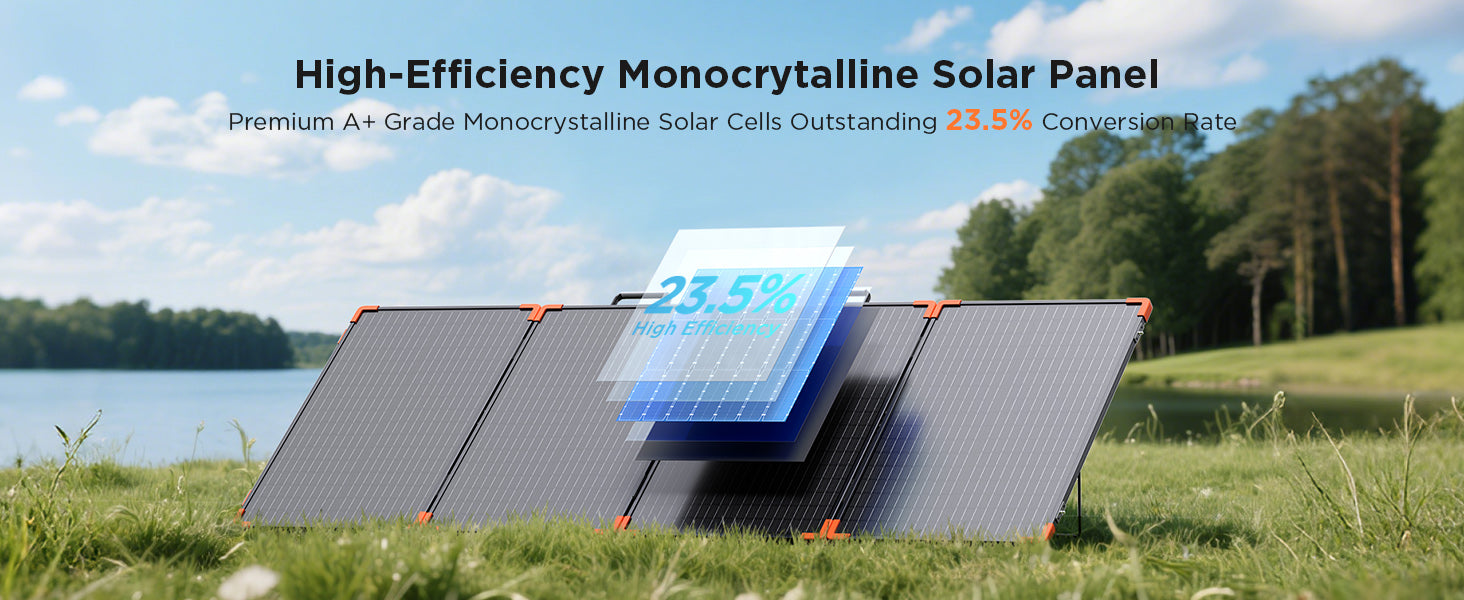

High-Efficiency Monocrystalline Solar Cells
Utilizing premium A+ grade monocrystalline solar cells, this solar panel delivers an outstanding 23.5% energy conversion rate. It maximizes solar absorption and power generation, providing a fast and reliable off-grid charging experience for your outdoor setups.
What's in the box?
ZOUPW 200W PERC Foldable Solar Panel (×1)

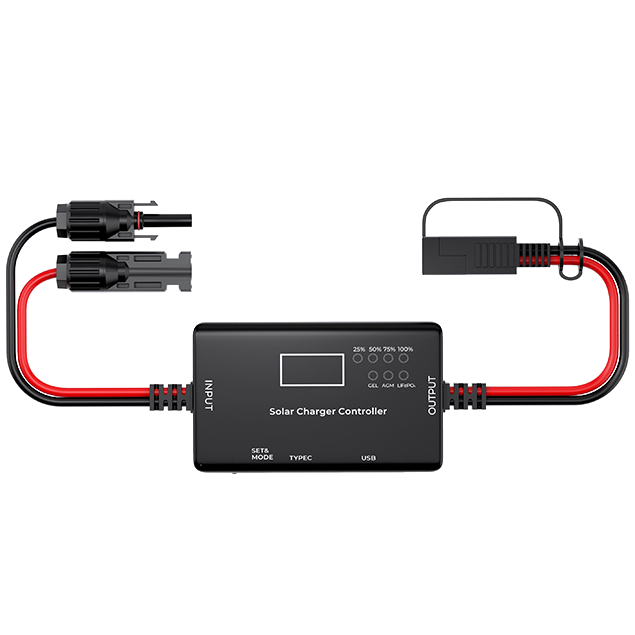

20A PWM Controller(×1)
10 in 1 Connectors(×1)
Solar Connectors to DC7909/DC8020/DC5521/ XT60/Anderson PP30
SAE-Alligator Clip Cable(×1)

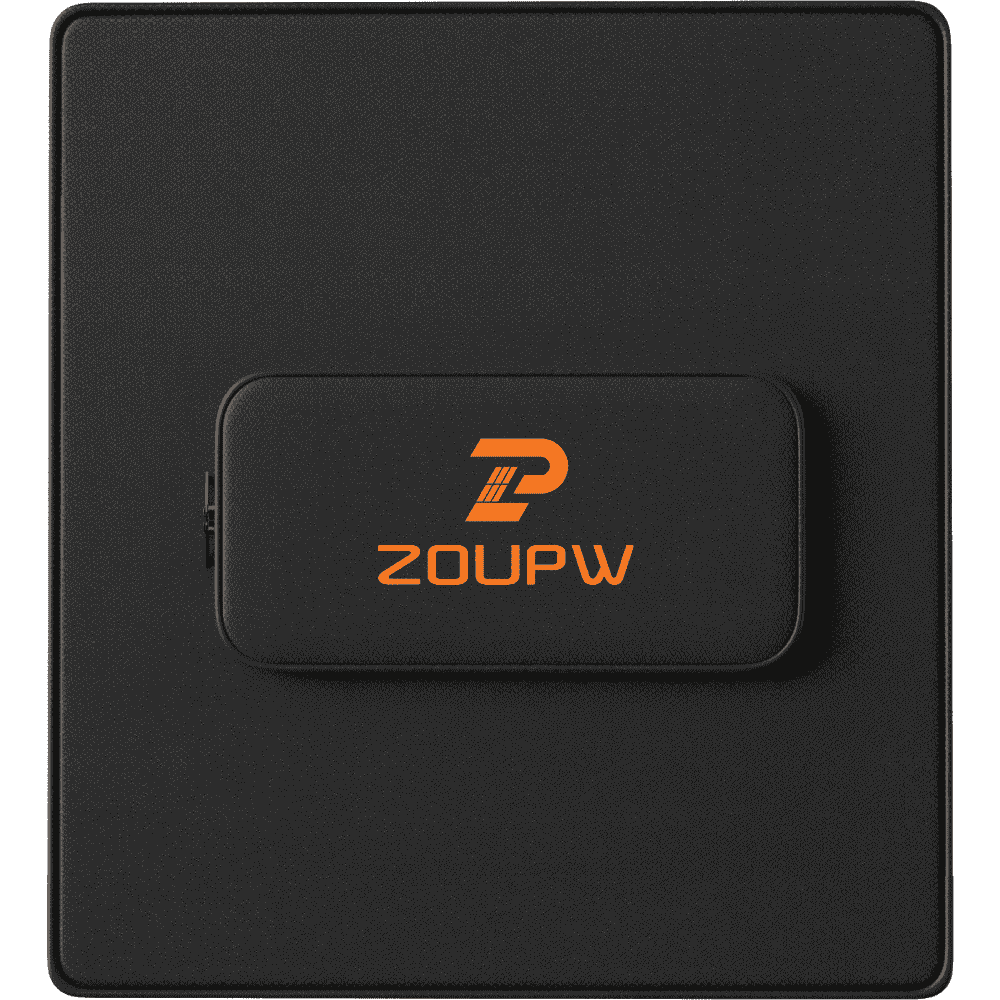

Solar Panel Storage Bag (×1)
User Manual (×1)
Specs
| Model | ZOUPW-FDZ200W |
| SKU | ZP200W-GFKV1-US |
| Maximum Power (Pmax) | 200W |
| Max Power Voltage (Vmp) | 19.1V |
| Max Power Current (Imp) | 10.4A |
| Open-circuit Voltage (Voc) | 23.1V |
| Short-circuit Current (Isc) | 11.1A |
| Power Tolerance | 0~±5% |
| Cell Type | Monocrystalline Silicon, 210-PERC |
| Glass | 1.6mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP67 |
| Cell Efficiency | 23.5% |
| Operating Temperature Range | -4°F ~ +140°F / -20°C ~ 60°C |
| Unfolded Dimensions | Approx. 27.007 in × 71.614 in × 0.787 in / 686 × 1819 × 20 mm |
| Folded Dimensions | Approx. 27.007 in × 17.913 in × 3.543 in / 686 × 455 × 90 mm |
| Weight | 20.61 ± 0.5 lb / 9.35 ± 0.2 kg |
Downloads

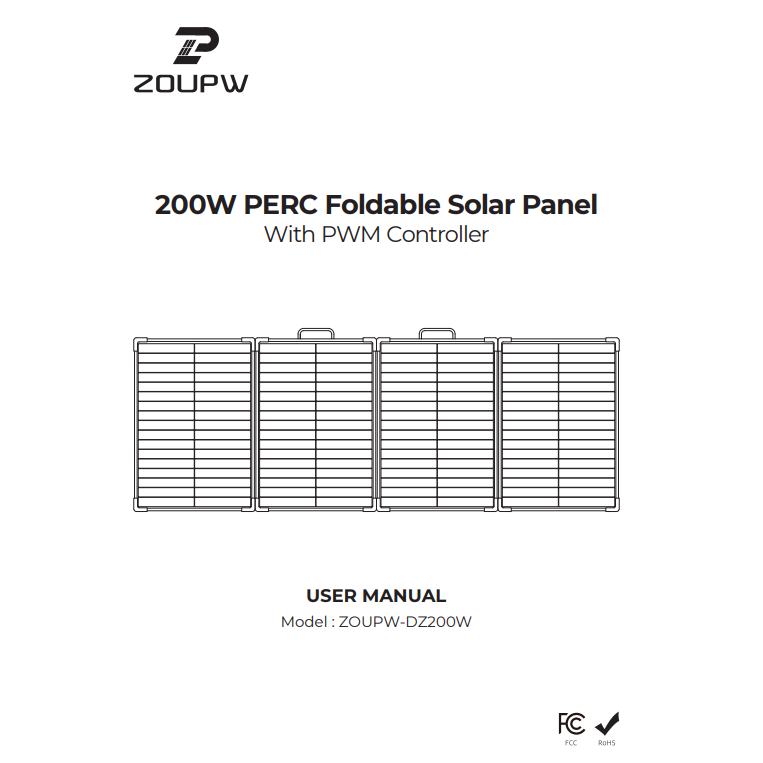

User Manual
