In full sunlight (with irradiance above 800W/m²), and with the foldable solar panel 100w properly angled, its output power can reach over 80W. However, if the sunlight intensity is lower, such as when there are clouds obstructing the sunlight, the panel's output power will decrease.Generally, you can expect the portable solar panels for camping to perform well in most situations, but it's important to consider that real-world conditions may result in lower power output than the maximum rated value
ZOUPW 100W Portable Solar Suitcase | Built-in 20A PWM Controller
10999
Online Exclusive Discount
AUG8
Free & Fast Shipping
30-Day Money back
Professional Support
Shipping Method
Delivery time: 3-8 business days
Perfectly Compatible With
Simply plug & play using included adapters.
* Note: Only popular models are listed above. If your power station's input voltage, current, and port type match this panel's specs, it will work perfectly too! Still unsure? Contact us.
Share
10999

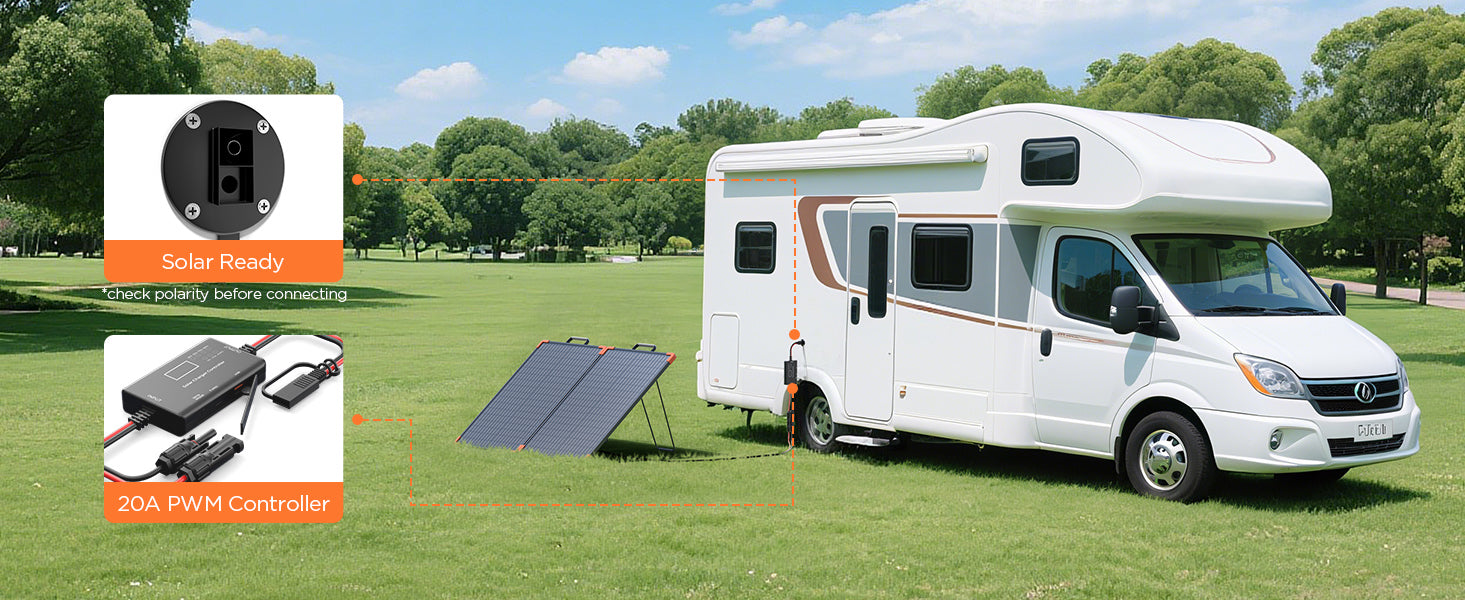

100W High-Efficiency Folding Solar Kit for RVs
100 watt solar suitcase is crafted with high-quality A+ grade monocrystalline silicon cells,delivering an impressive 23.5% conversion efficiency. Its 1.6mm tempered glass surface provides exceptional durability and impact resistance, making it more resilient than standard ETFE or PET materials. This toughened glass construction is ideal for challenging outdoor conditions, effectively shielding the solar cells from scratches and cracks for extended performance.
All-Weather Tempered Glass RV Solar Panel for Extreme Conditions
Built with durable tempered glass, this RV solar panel withstands harsh conditions. Featuring an IP67 waterproof rating, 2400Pa max wind load, and 5400Pa max snow load, it ensures reliable, heavy-duty off-grid power for winter camping and extreme outdoor environments.

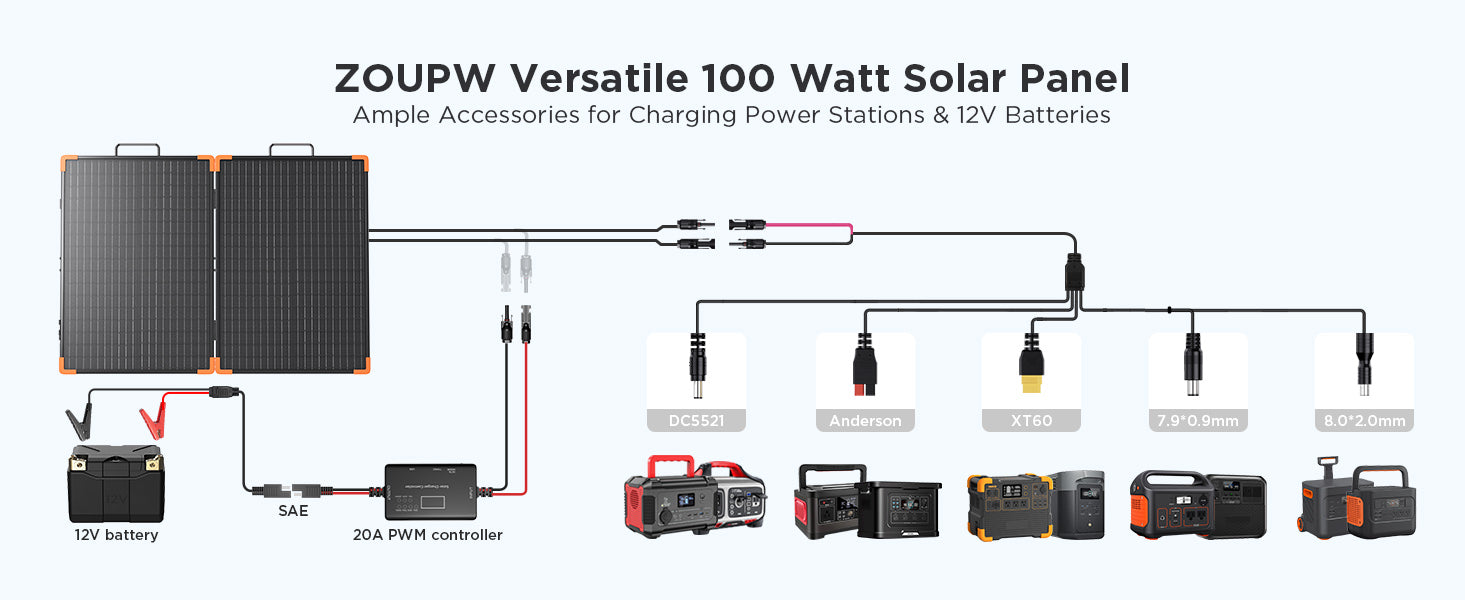

Extensive Accessories for Charging Various Power Stations & 12V Batteries
you can use the 5-in-1 solar cable that comes with this solar panel 100 watt
Meanwhile, there is a complimentary 10 in 1 DC adapter DC5521 (Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955(Male) to expand the folding solar panel's compatibility.
1. Power Station Compatibility
Please Note: Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100 watt solar suitcase in optimal sunlight conditions, the power it receives won't exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.
For 12V batteries

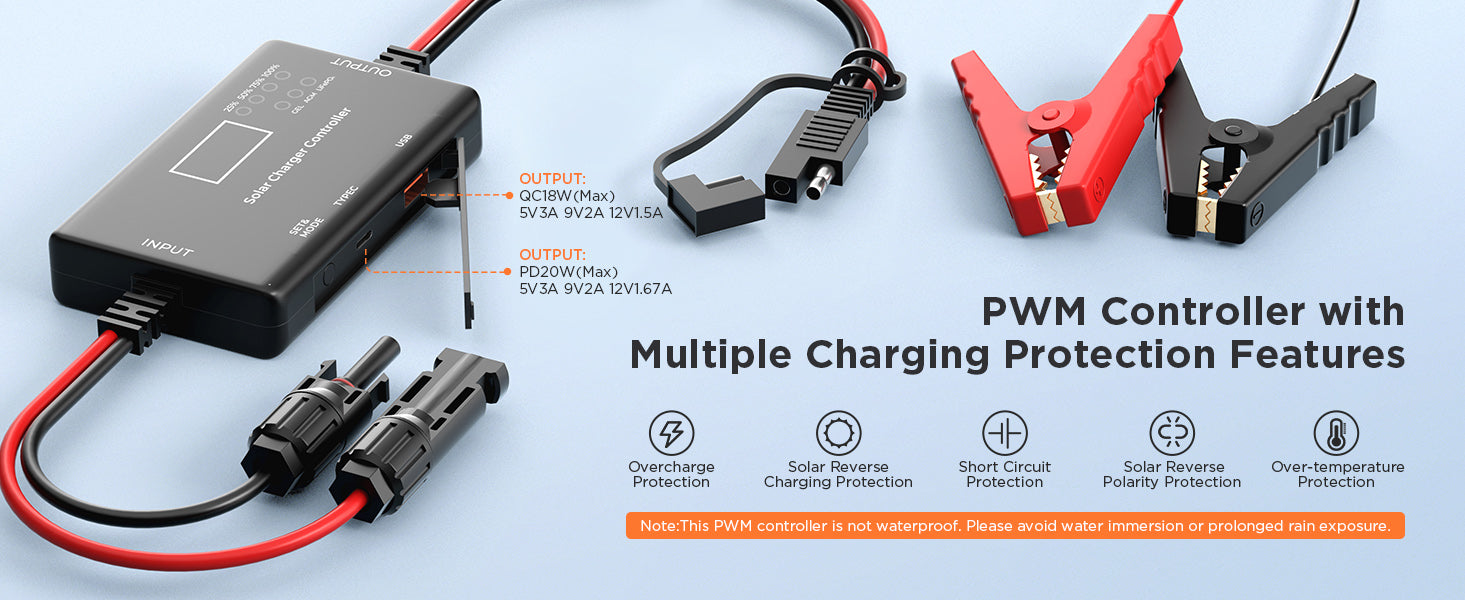

we provide a complimentary 20A PWM charge controller and SAE-alligater clip cable.
1.Connect the SAE-Alligator Clip Cable to the PWM Controller
2.Connect the battery, attach the positive terminal first, followed by the negative terminal and then connect the PWM controller to the solar panel portable
Note:The PWM controller is not waterproof,please avoid water immersion or prolonged rain exposure
Ultra-Durable 1.6mm Tempered Glass Performance

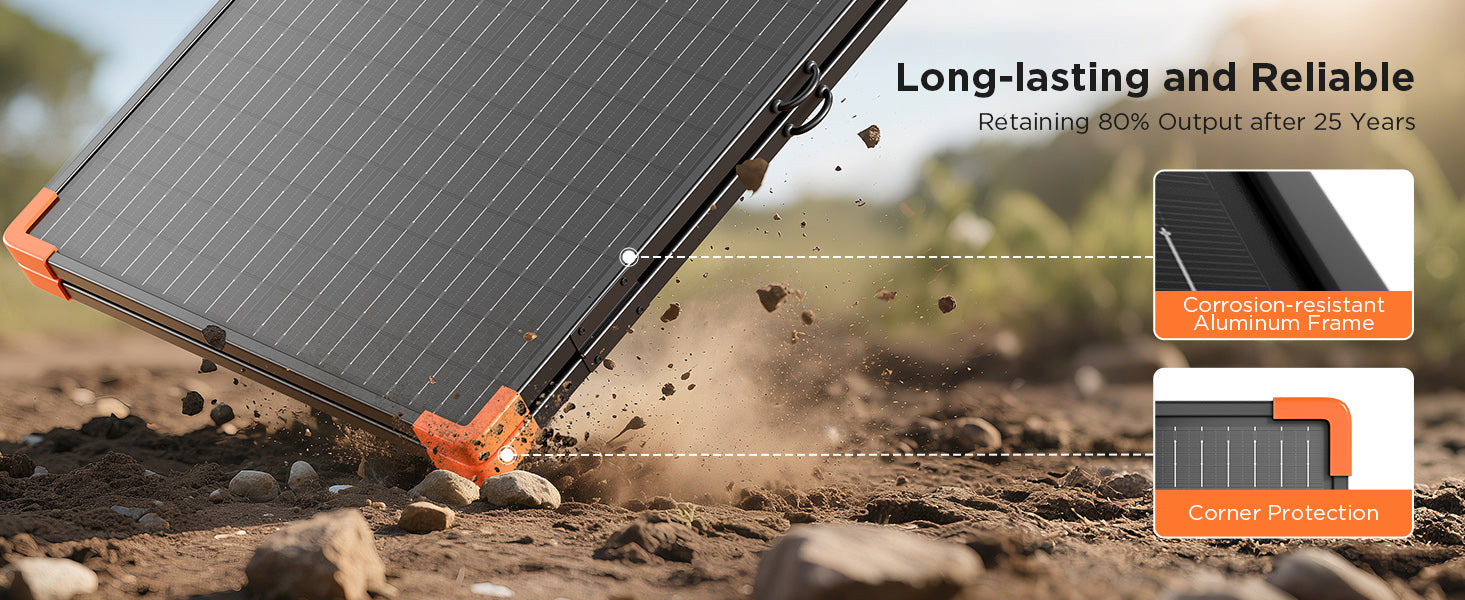

Constructed with premium 1.6mm tempered glass, this 100W solar suitcase offers excellent impact, scratch, and crack resistance. This durable, low-degradation design ensures long-lasting performance, reliably retaining up to 80% of its power output even after 25 years.

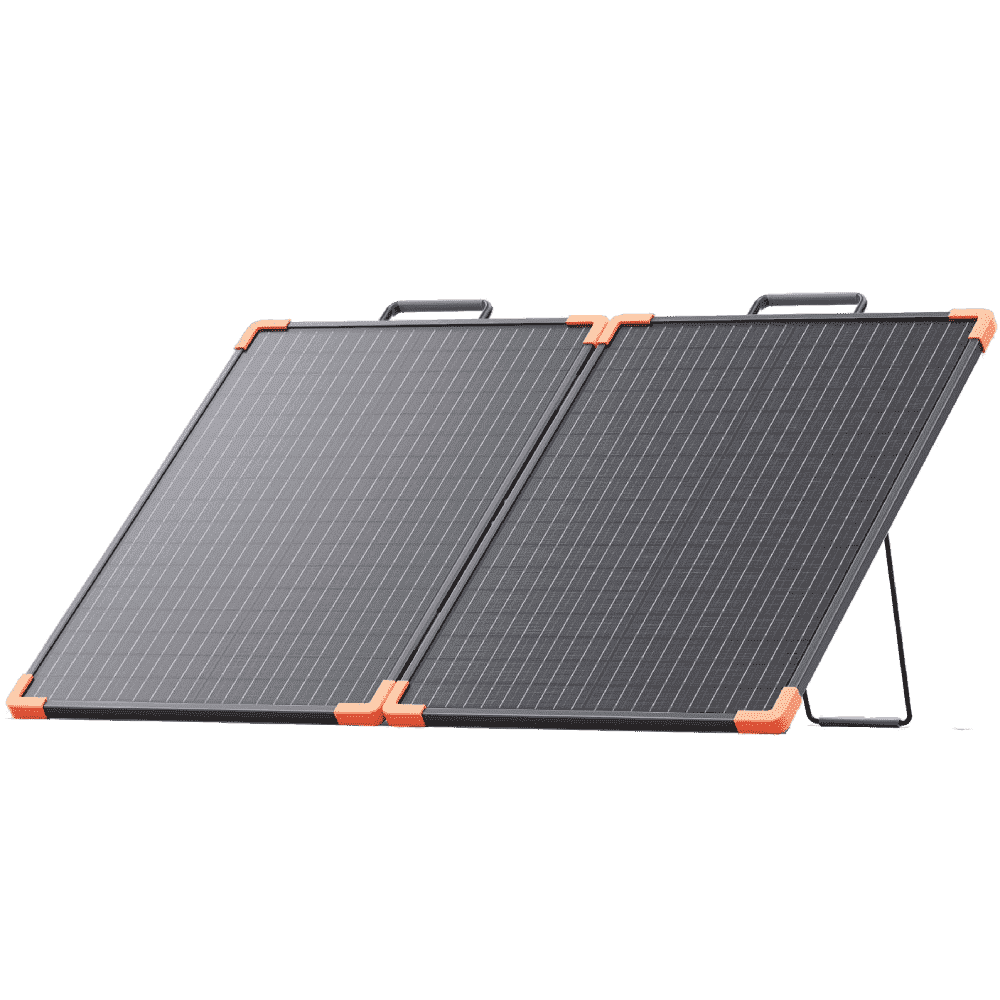

Portable Folding Design for Easy Setup

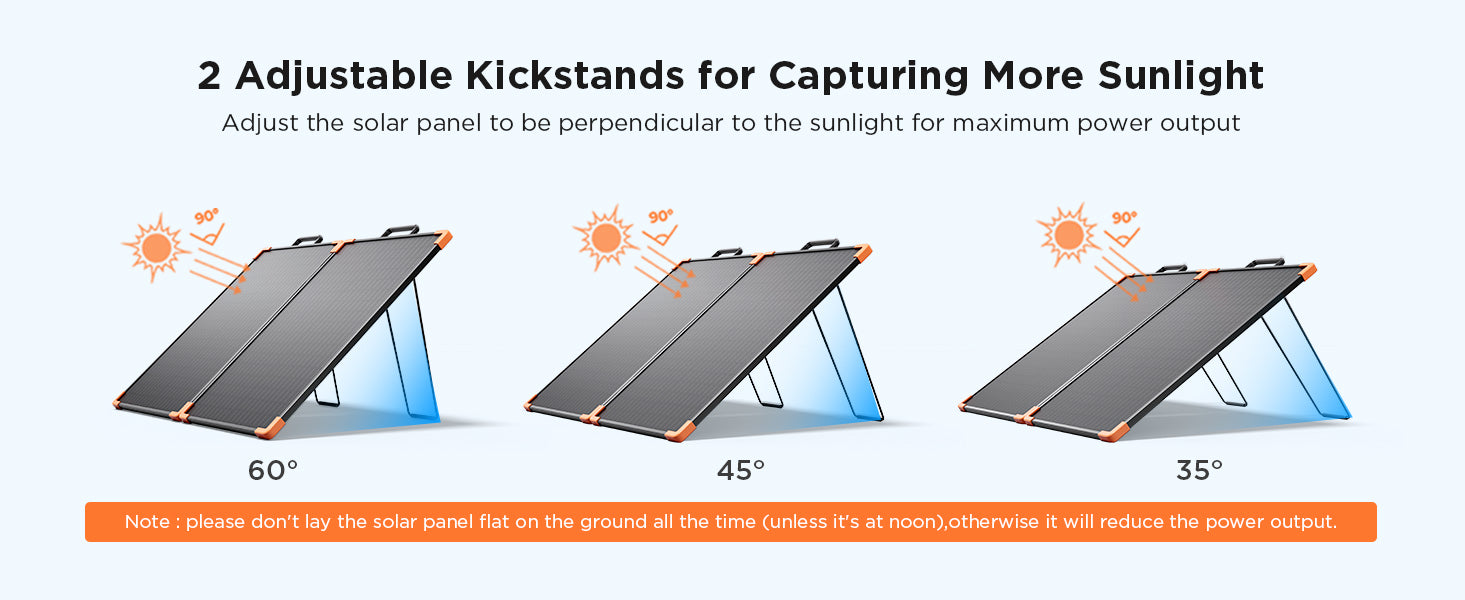

Our 100 watt solar suitcase is designed to be portable and foldable, with folded dimensions of 27 x 17.9 x 1.77 inches and weighing only 9.36 lbs. It includes a stylish carrying bag, making it easy to store in your camper or RV without occupying much space. For a quick setup, just unfold the folding solar panel and position the 2 kickstands at approximately a 90-degree angle toward the sun for maximum power output
What's in the box?
ZOUPW 100W PERC Foldable Solar Panel (×1)
20A PWM Controller(×1)
10 in 1 Connectors(×1)
Solar Connectors to DC7909/DC8020/DC5521/ XT60/Anderson PP30
SAE-Alligator Clip Cable(×1)
Solar Panel Storage Bag (×1)
User Manual (×1)
Specs
| Model | ZOUPW-DZ100W |
| SKU | ZP100W-GFKV1-US |
| Maximum Power (Pmax) | 100W |
| Max Power Voltage (Vmp) | 19.1V |
| Max Power Current (Imp) | 5.213A |
| Open-circuit Voltage (Voc) | 23.1V |
| Short-circuit Current (Isc) | 5.54A |
| Power Tolerance | 0~±5% |
| Cell Type | Monocrystalline Silicon, 210-PERC |
| Glass | 1.6mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP67 |
| Cell Efficiency | 23.5% |
| Operating Temperature Range | -4°F ~ +140°F / -20°C ~ 60°C |
| Unfolded | 27 × 35.78 × 0.79 IN / 686 × 909 × 20 mm |
| Folded | 27 × 17.9 × 1.77 IN / 686 × 455 × 45 mm |
| Weight | 4.7 ± 0.2 kg / 9.36 LBS |
Downloads

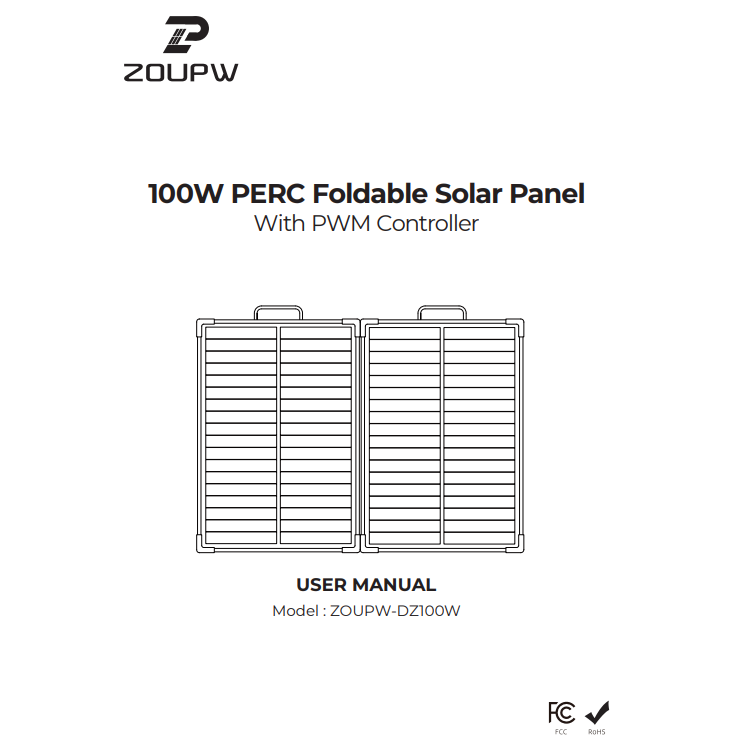

User Manual
ZOUPW 100W Portable Solar Suitcase | Built-in 20A PWM Controller Guide (PDF)
