100 Watt Solar Suitcase with 20A PWM Controller

(0)

$169.99 $129.99
  • High-performance monocrystalline silicon cells with 23.5% conversion efficiency.
  • Design Foldable&Durable with tempered glass and anodized aluminum alloy frame.
  • IP67 waterproof.
  • Wide compatibility with power stations,12V batteries and more.
  • PWM controller with multi-protection.
  • Ideal for outdoor, camping, RV, and home backup use.
  • 5-year solar panel warranty, 1-year controller warranty.
Size

Technical Specifications

  • Maximum Power at STC (Pmax)

    100W

  • Maximum Power Voltage (Vmp)

    19.1V

  • Maximum Power Current (Imp)

    5.213A

  • Opencircuit Voltage (Voc)

    23.1V

  • Shortcircuit Current (Isc)

    5.54A

  • Cell Type

    Monocrystalline Silicon, PERC

  • IP Rating

    IP67

  • Cell Efficiency

    23.5%

  • Operating Temperature Range

    -4°F ~ +140°F/-20°C ~ 60°C

Connection & Compatibility

  • USB-A/Type-C outputs (QC 18W, PD 20W) for smart devices.

  • Supports DC8020, DC7909,DC5521, XT60, and Anderson connectors.

  • Supports both series and parallel connections for increased power.

  • Wide compatibility with power stations,12V batteries and more.

Dimensions

  • Unfolded

    27*35.78*0.79 IN/686 × 909 × 20 mm

  • Folded

    27*17.9*1.77 IN/686 × 455 × 45 mm

  • Weight

    4.7 ± 0.2kg/9.36 LBS

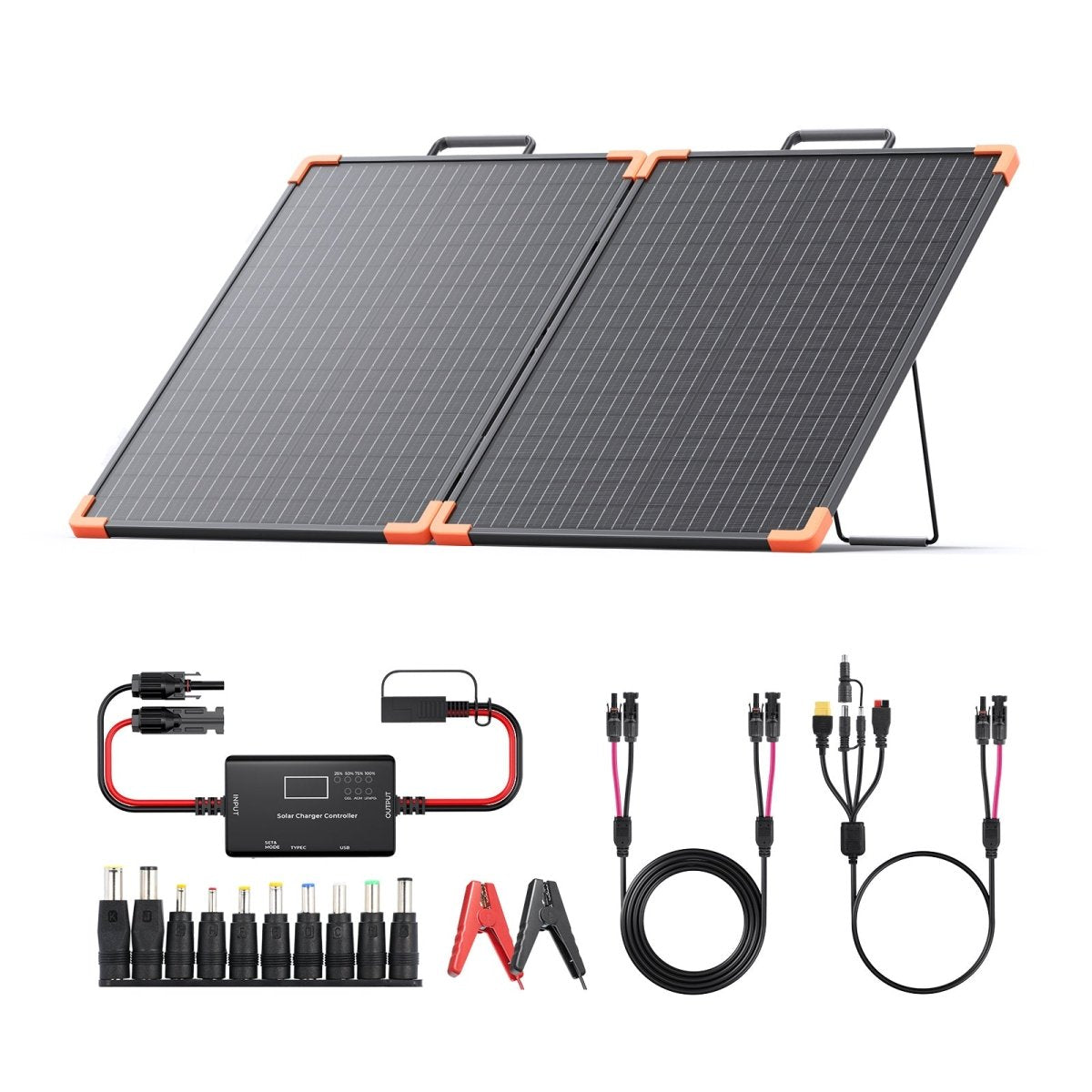

1. 100W PERC Foldable Solar Panel × 1 Pcs
2. MC-4 to DC5521/DC7909(With DC8020 Adapter)/XT60/Anderson Cable × 1 Pcs
3. DC5521 (Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955 (Male) Adapters Set × 1 Pcs
4. PWM Controller × 1 Pcs
5. SAE-Alligator Clip Cable × 1 Pcs
6. Storage Bag × 1 Pcs
7. User Manual × 1 Pcs

User Manual download

Share

100 Watt Solar Suitcase with 20A PWM Controller

100 Watt Solar Suitcase with 20A PWM Controller

$169.99 $129.99
$169.99 $129.99

ZOUPW 100 watt solar suitcase with 20A PWM Controller for Power Station & 12V Batteries,23.5% High Efficiency Aluminum Frame Folding Solar Panel for RV Camping.

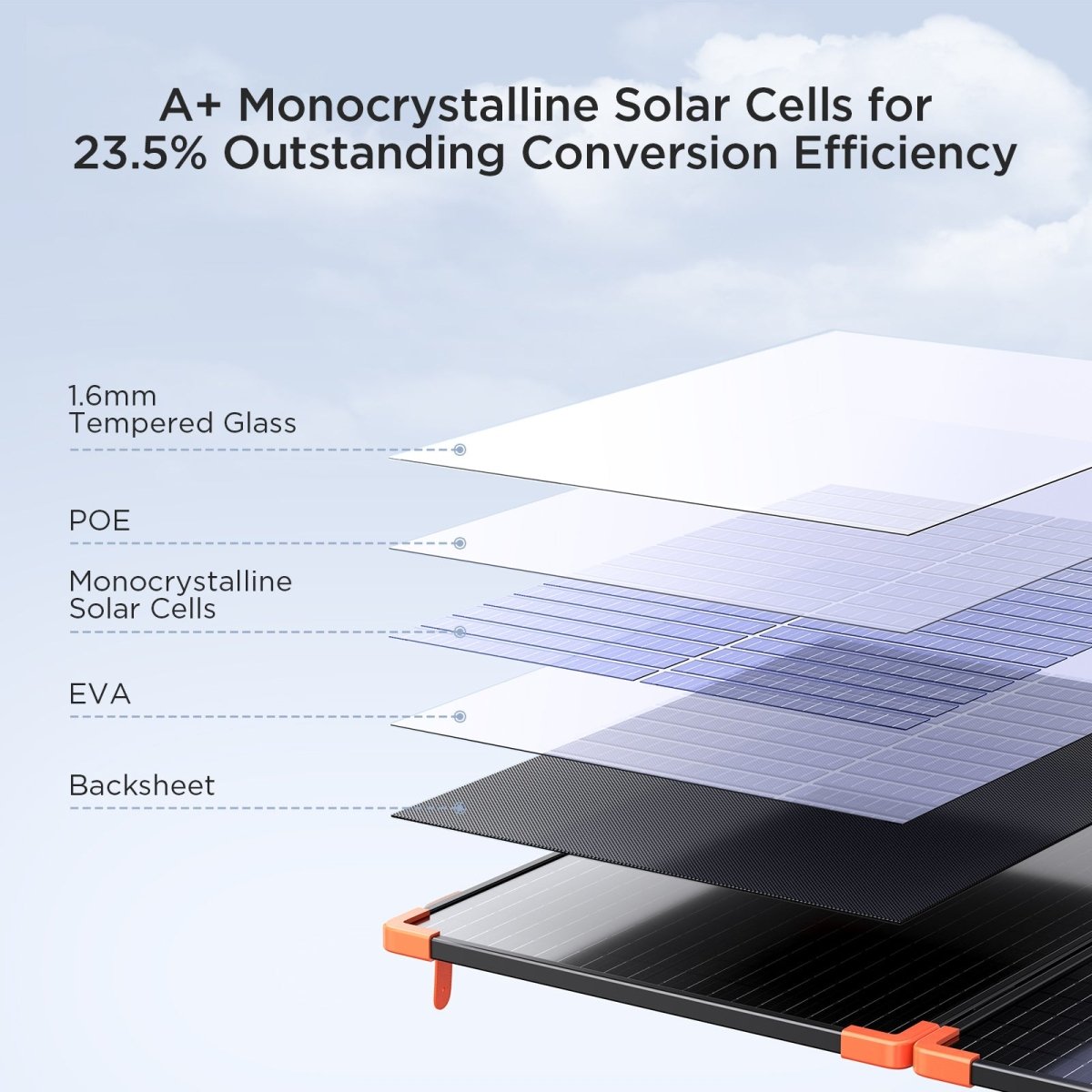

100 watt solar suitcase is crafted with high-quality A+ grade monocrystalline silicon cells,delivering an impressive 23.5% conversion efficiency. Its 1.6mm tempered glass surface provides exceptional durability and impact resistance, making it more resilient than standard ETFE or PET materials. This toughened glass construction is ideal for challenging outdoor conditions, effectively shielding the solar cells from scratches and cracks for extended performance.

Extensive Accessories for Charging Various Power Stations & 12V Batteries

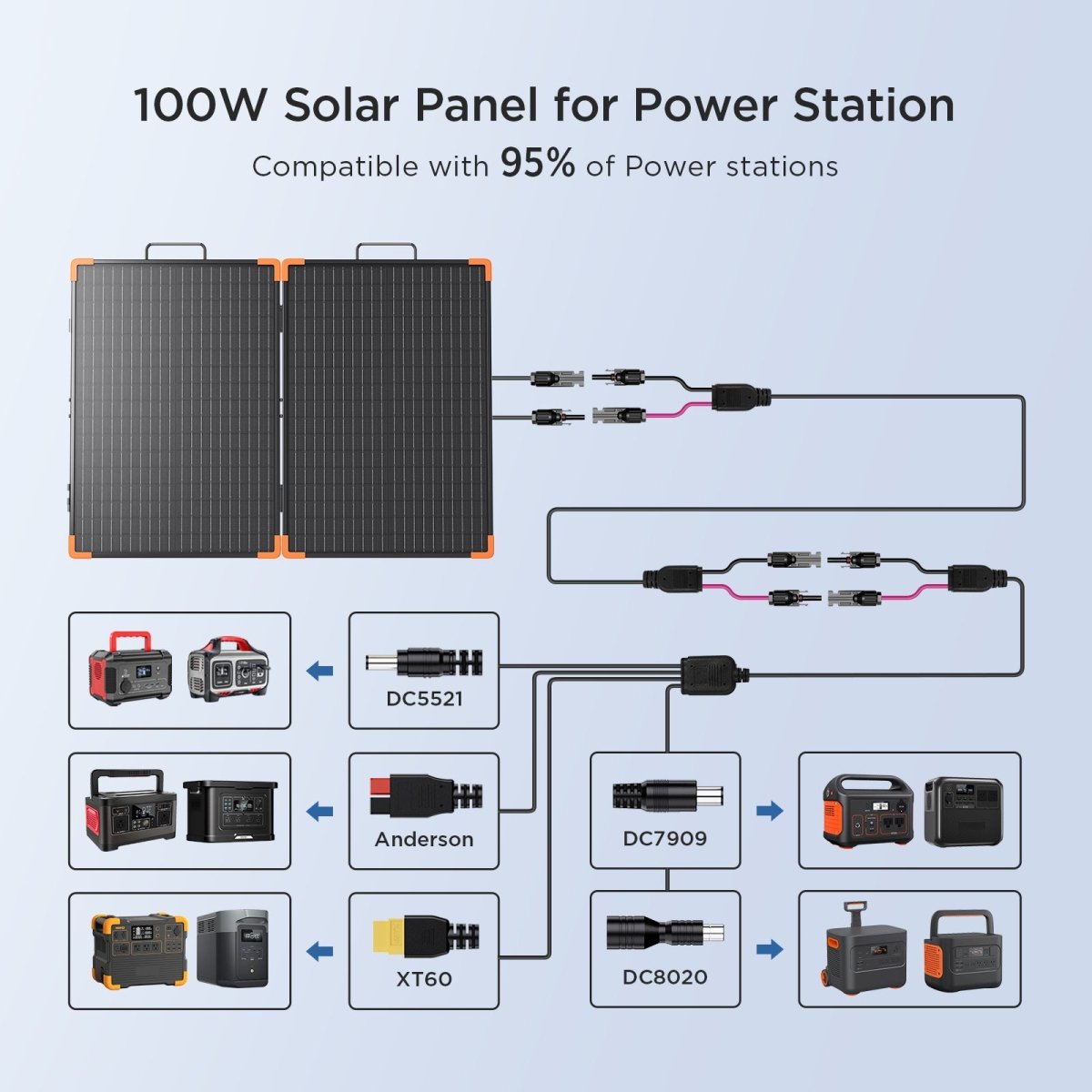

For power stations

you can use the 5-in-1 solar cable that comes with this solar panel 100 watt

DC5521

adapter for Rockpals 250W/350W/500W, FlashFish 200W/300W,PAXCESS ROCKMAN 200W/300W/500W, PRYMAX 300W
Anderson adapter for Jackery Explorer 1000,ROCKPALS 300W,Ecoflow
DC7909 adapter for Jackery Explorer 300/500/1000/1500,Goal Zero Yeti 160/240/300, Anker 521 Power Station, BLUTTI EB 240,GRECELL 300W/500W/1000W
DC8020 adapter(DC7909 female to DC8020 male) for Jackery Explorer 1000 v2/600 Plus/880 Plus/1000 Pro/1000 Plus/1500 Pro/2000 Pro/2000 Plus/3000 Pro
XT60 adapter for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh

Meanwhile,there is a complimentary 10 in 1 DC adapter DC5521(Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955(Male) to expand the folding solar panel's compatibility.

Please Note:Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100 watt solar suitcase in optimal sunlight conditions, the power it receives won't exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.

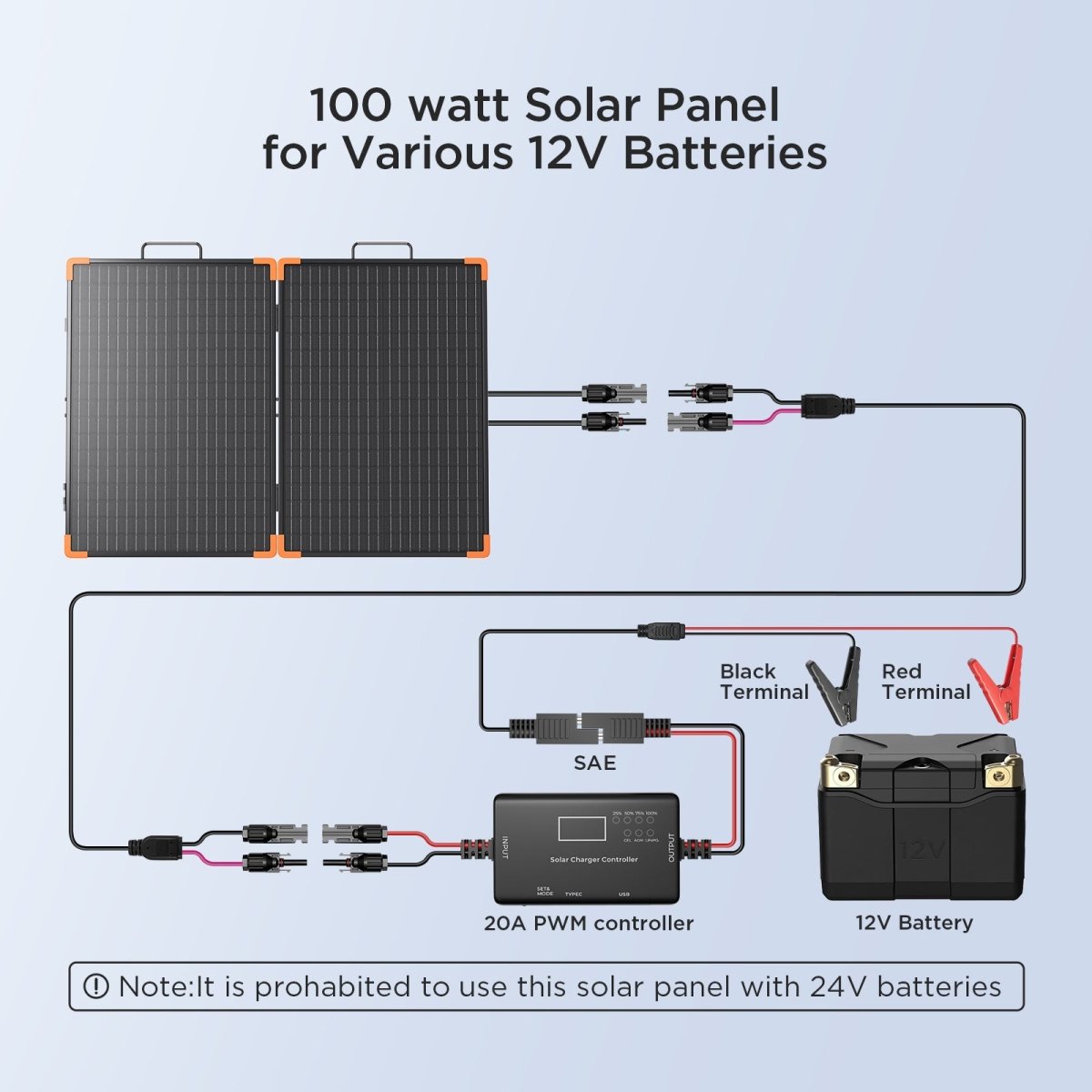

For 12V batteries

we provide a complimentary 20A PWM charge controller and SAE-alligater clip cable

1.Connect the SAE-Alligator Clip Cable to the PWM Controller

2.Connect the battery, attach the positive terminal first, followed by the negative terminal and then connect the PWM controller to the solar panel portable

Note:The PWM controller is not waterproof,please avoid water immersion or prolonged rain exposure

With IP67 waterproofing,the100 watt solar suitcase is made to endure tough outdoor conditions. The tempered glass protects against scratches and cracks,ensuring a long lifespan and lower degradation

Constructed with 1.6mm tempered glass, the 100 watt solar suitcase offer excellent impact resistance and long-lasting performance, retaining up to 80% of power output even after 25 years

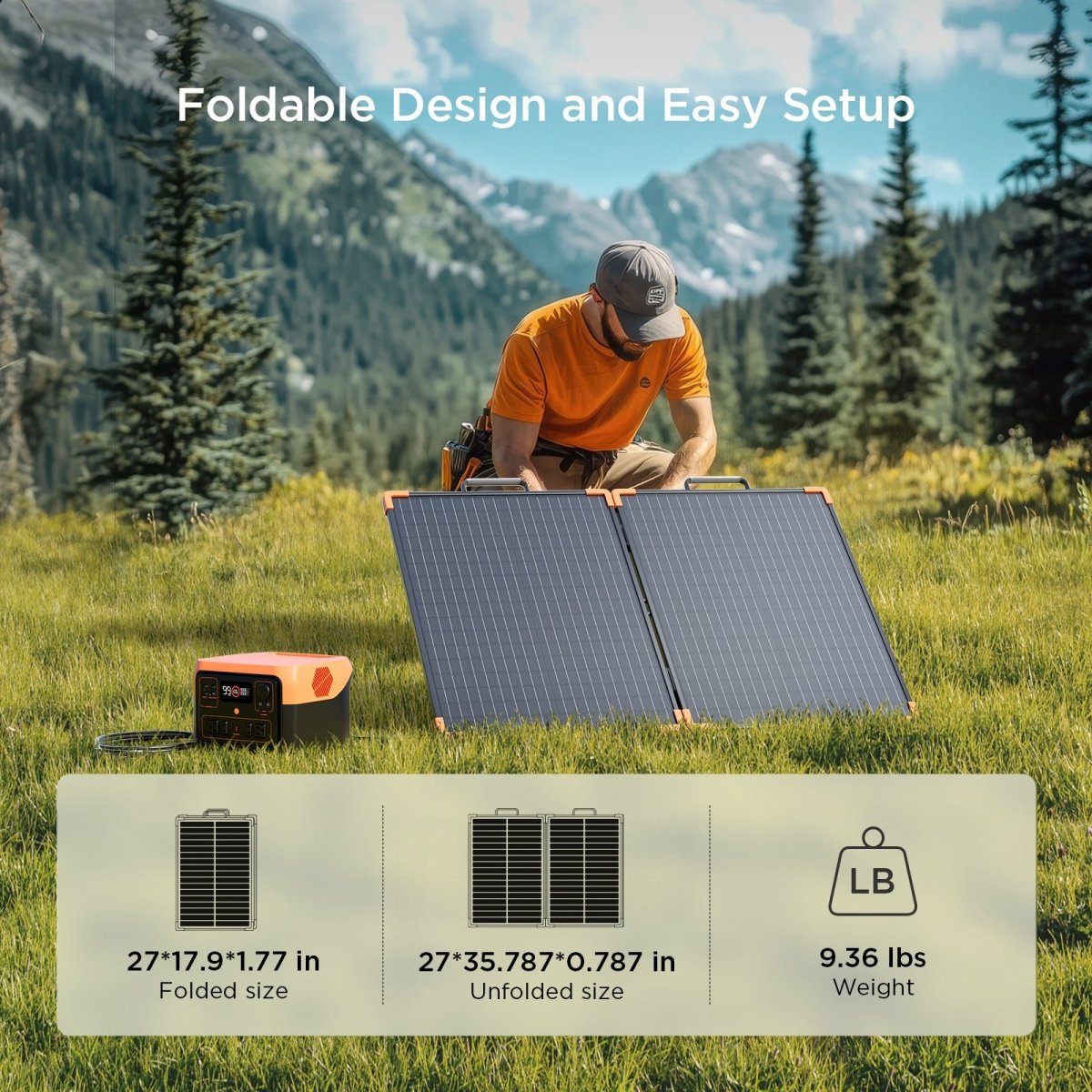

Our 100 watt solar suitcase is designed to be portable and foldable, with folded dimensions of 27 x 17.9 x 1.77 inches and weighing only 9.36 lbs. It includes a stylish carrying bag, making it easy to store in your camper or RV without occupying much space. For a quick setup, just unfold the folding solar panel and position the 2 kickstands at approximately a 90-degree angle toward the sun for maximum power output

FAQS About 100 Watt Solar Suitcase with 20A PWM Controller

In full sunlight (with irradiance above 800W/m²), and with the foldable solar panel 100w properly angled, its output power can reach over 80W. However, if the sunlight intensity is lower, such as when there are clouds obstructing the sunlight, the panel's output power will decrease.Generally, you can expect the portable solar panels for camping to perform well in most situations, but it's important to consider that real-world conditions may result in lower power output than the maximum rated value

Please read the product detail page carefully before placing your order. This folding solar panel comes with a solar charging cable that includes 5 connectors: XT-60, Anderson, DC7909, DC8020 and DC5521. Before purchasing, please confirm that your power station's solar interface is compatible with at least one of these four connectors. Additionally, the output voltage of this solar panel is 19V, so please ensure that your power station's input voltage range includes 19V.

The actual output power of a 100w portable solar panel is typically lower than its rated power due to several factors:

Solar Irradiance: Rated power is measured under Standard Test Conditions (STC), which assume optimal conditions: 1000W/m² of sunlight, a panel temperature of 25°C, and direct sunlight. In real conditions, sunlight intensity is often lower due to cloud cover, time of day, or geographical factors, leading to reduced output.

Temperature: Solar panels lose efficiency as their temperature rises. High temperatures cause a decrease in output power, as most panels have a negative temperature coefficient, meaning their output decreases as the temperature increases.

Angle and Orientation: If the panel is not positioned to directly face the sun or at the optimal angle, it will receive less sunlight, resulting in lower output.

Panel Aging: Over time, solar panels degrade, and their efficiency decreases. Typically, panels retain around 80% of their original output after 25 years.

Shading: Even partial shading (from trees, buildings, etc.) can significantly reduce a panel's output, as it affects the entire panel's performance.
